Pedalboard / 123
Dann Huff

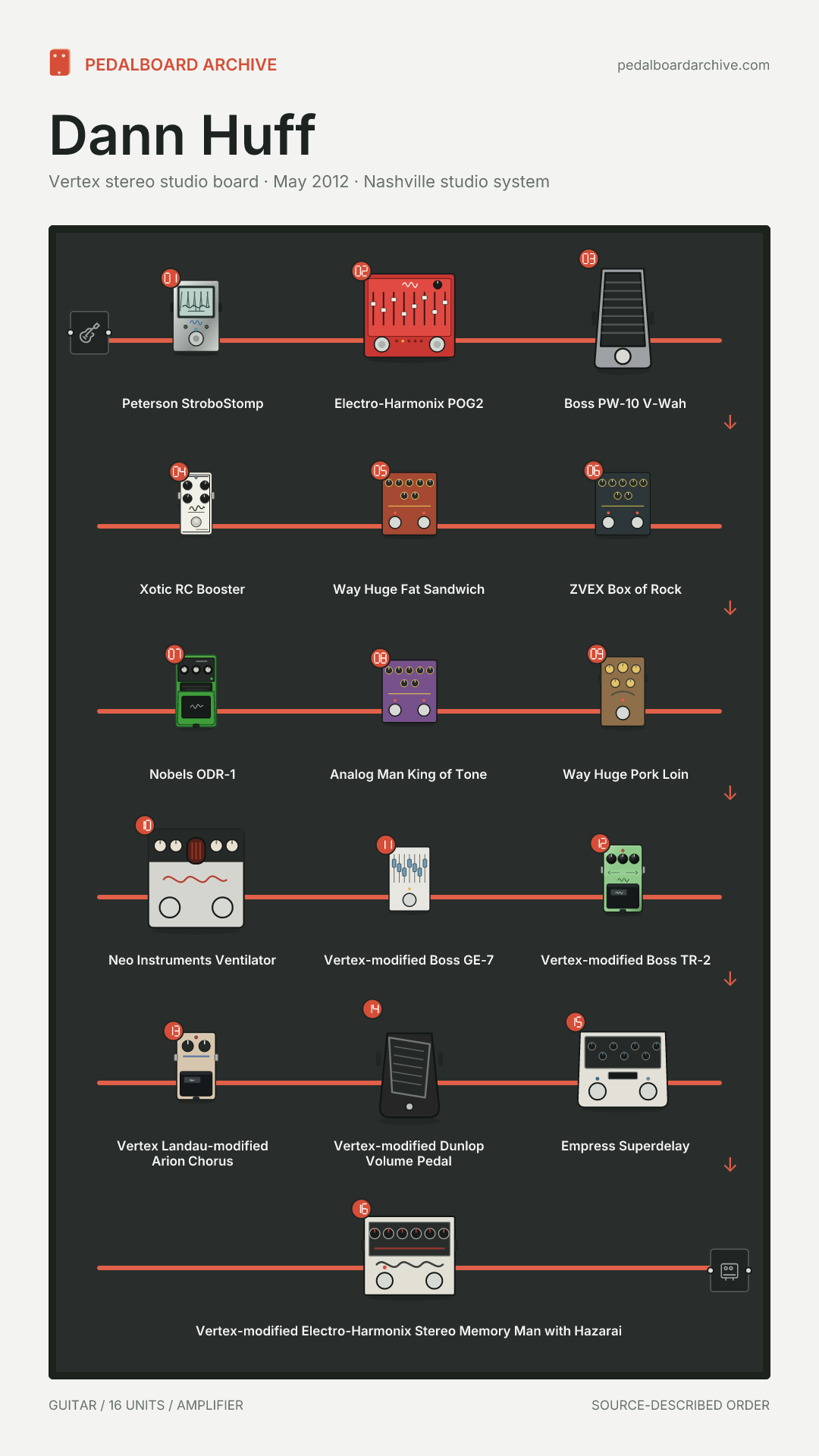

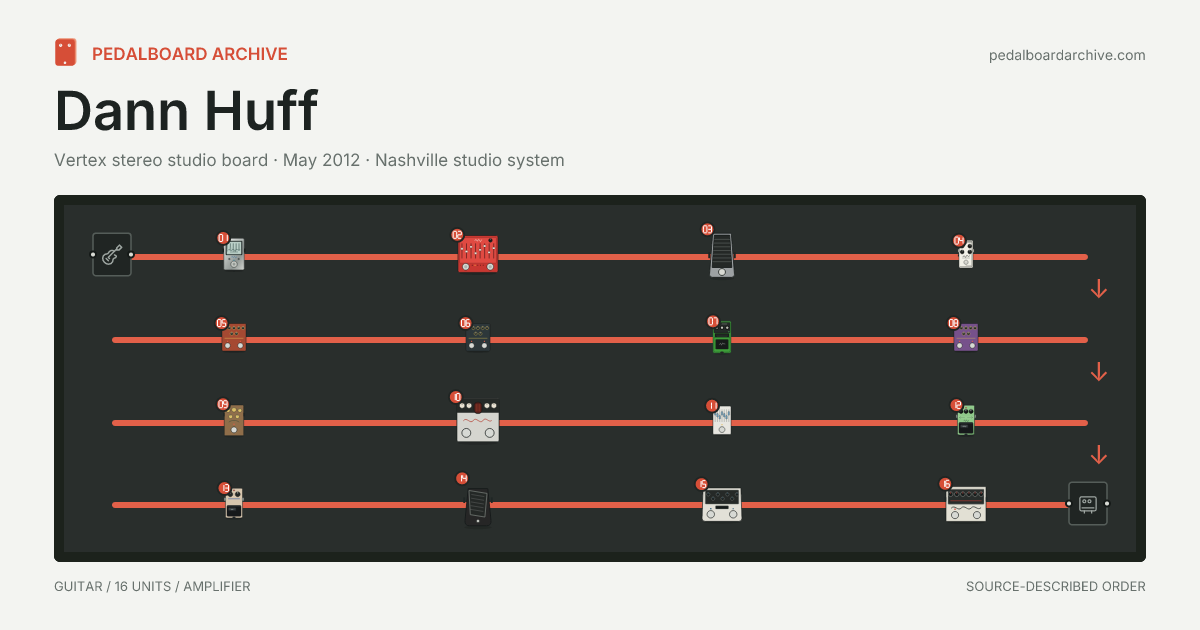

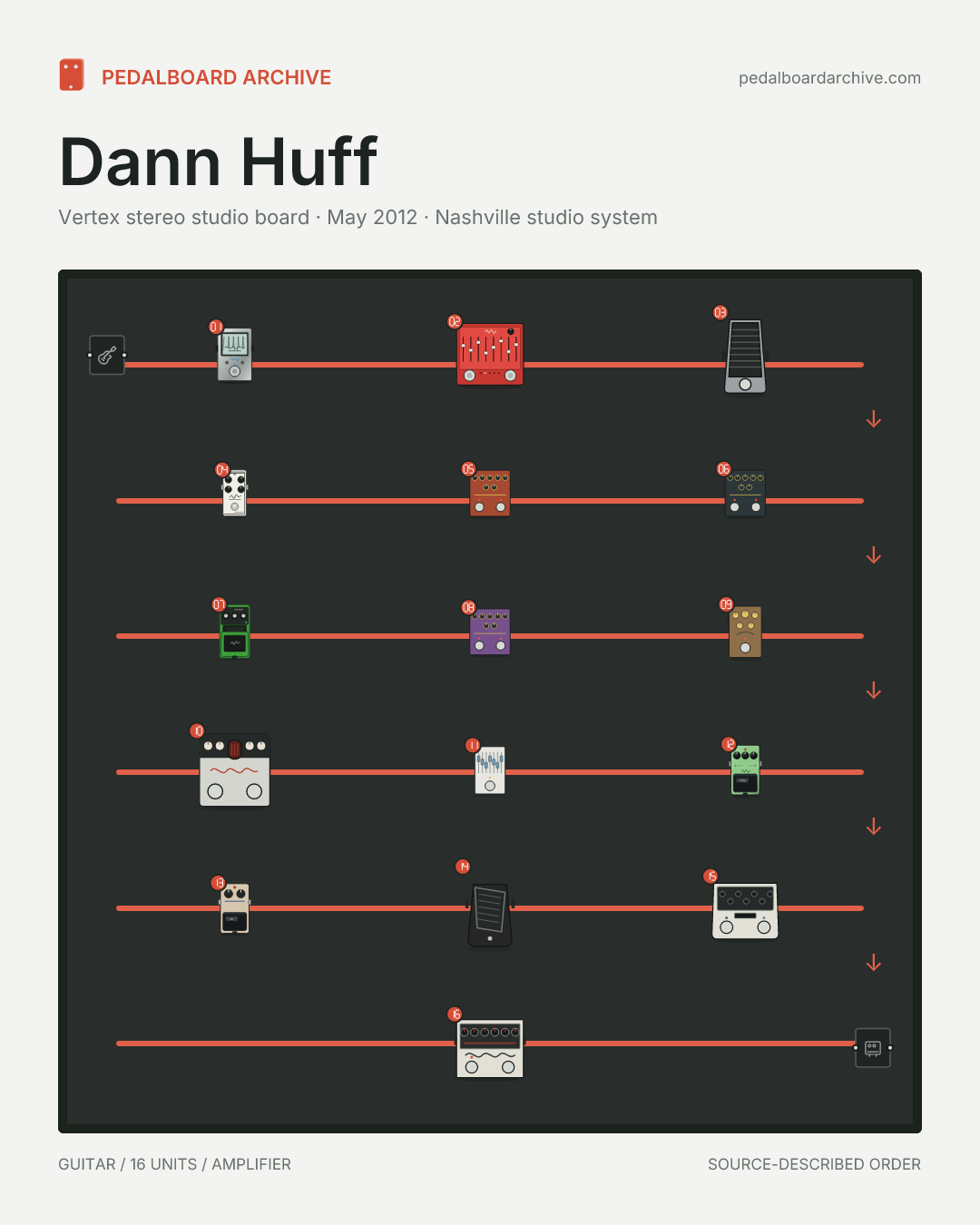

A buffered stereo studio board moves through pitch, wah and six drive flavors before an insert, rotary and modulation section, volume control and two delays.
Signal path / A
Vertex stereo studio board
Builder-documented board · complete signal map
Documented equipment · Source-described order · Split output path
Vertex, the board builder, published the exact input-to-output sequence represented here, including the input buffer, effects breakout and isolated stereo output interface. Those utility stages are described but omitted from the pedal line; the path resumes at the Ventilator after the breakout return and ends before the left/right output buffers. Premier Guitar's 2025 visual rundown independently documents Huff's later pedalboard practice but is not used to backfill the 2012 inventory.
