Pedalboard / 093
James Burton

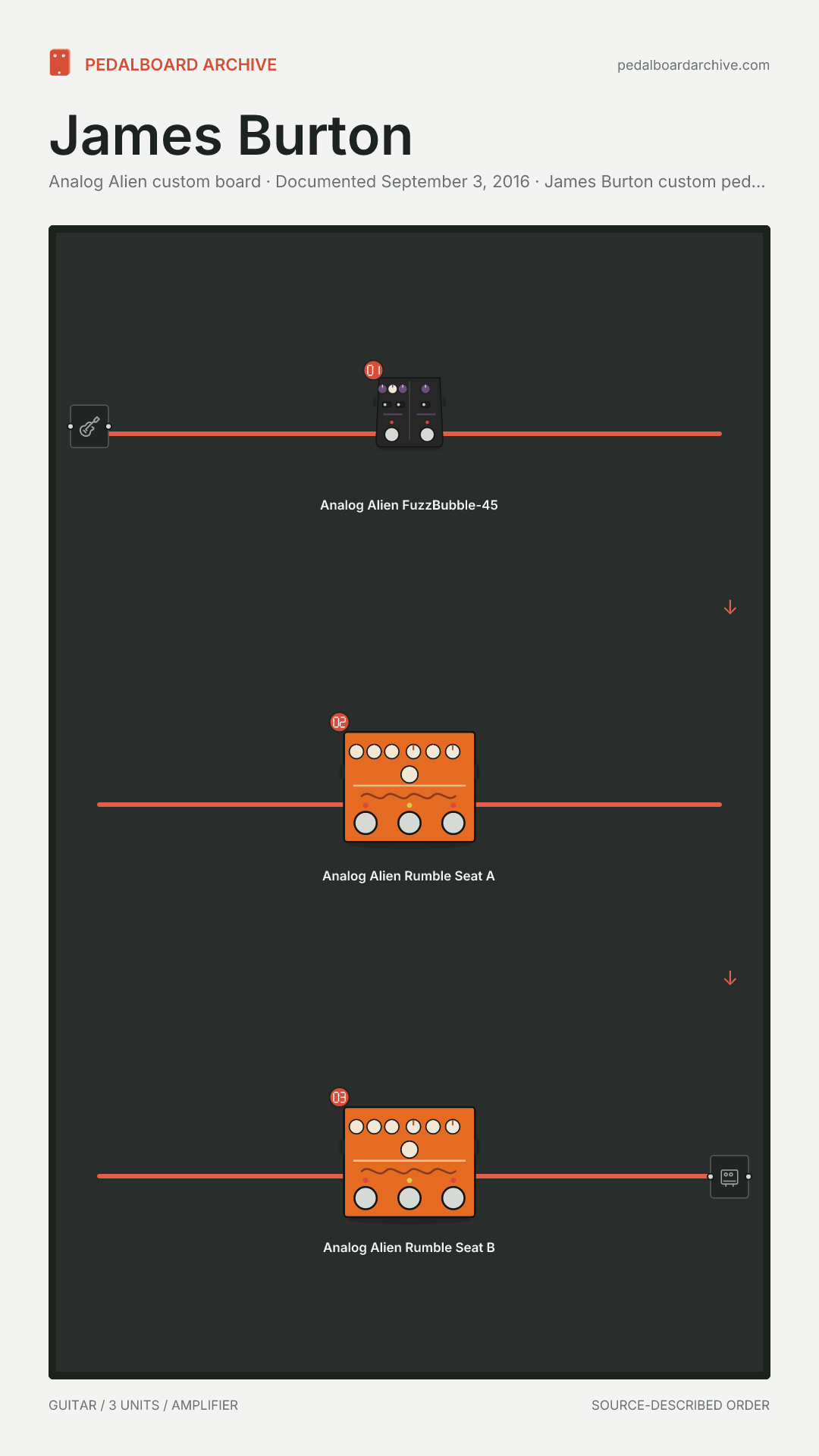

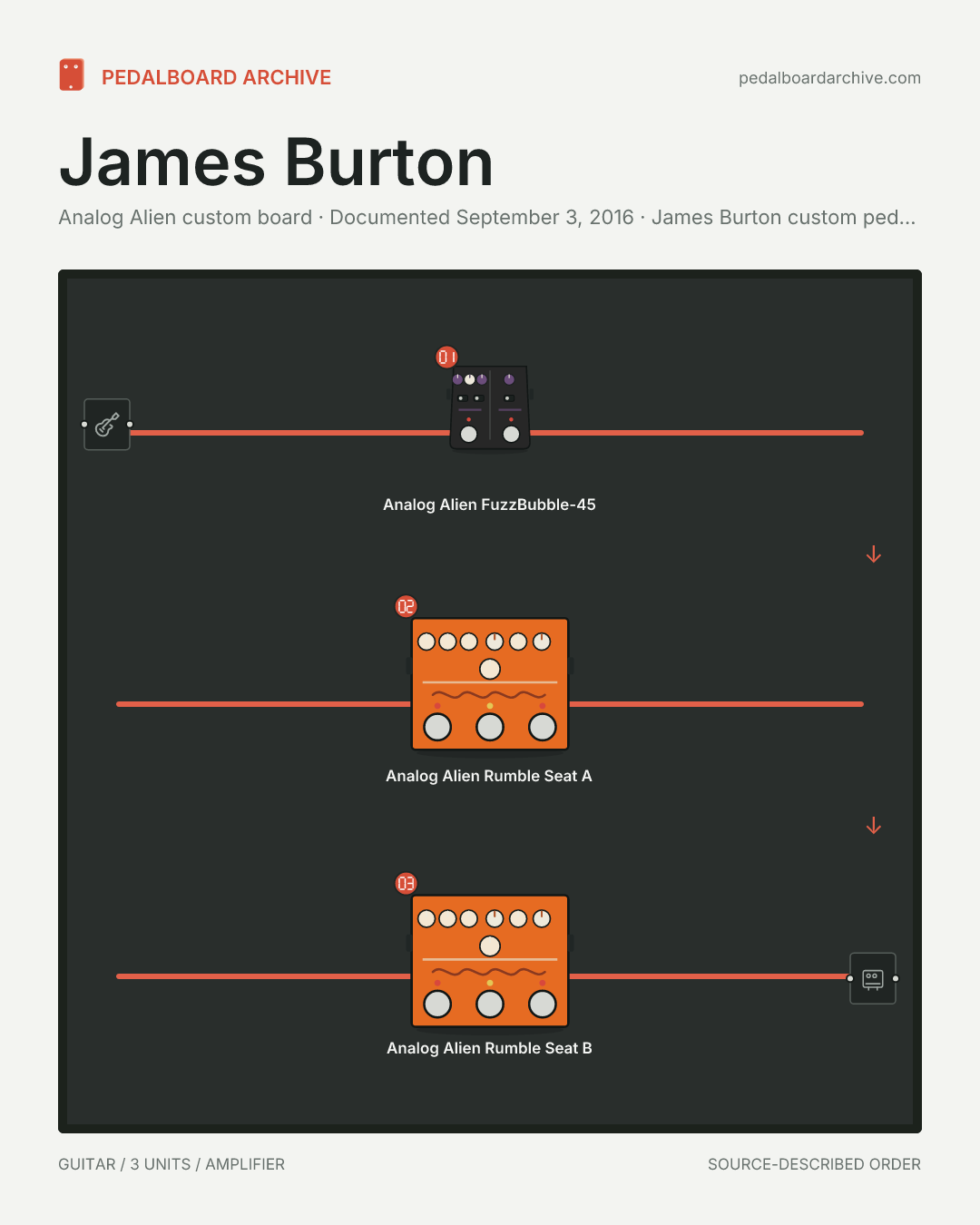

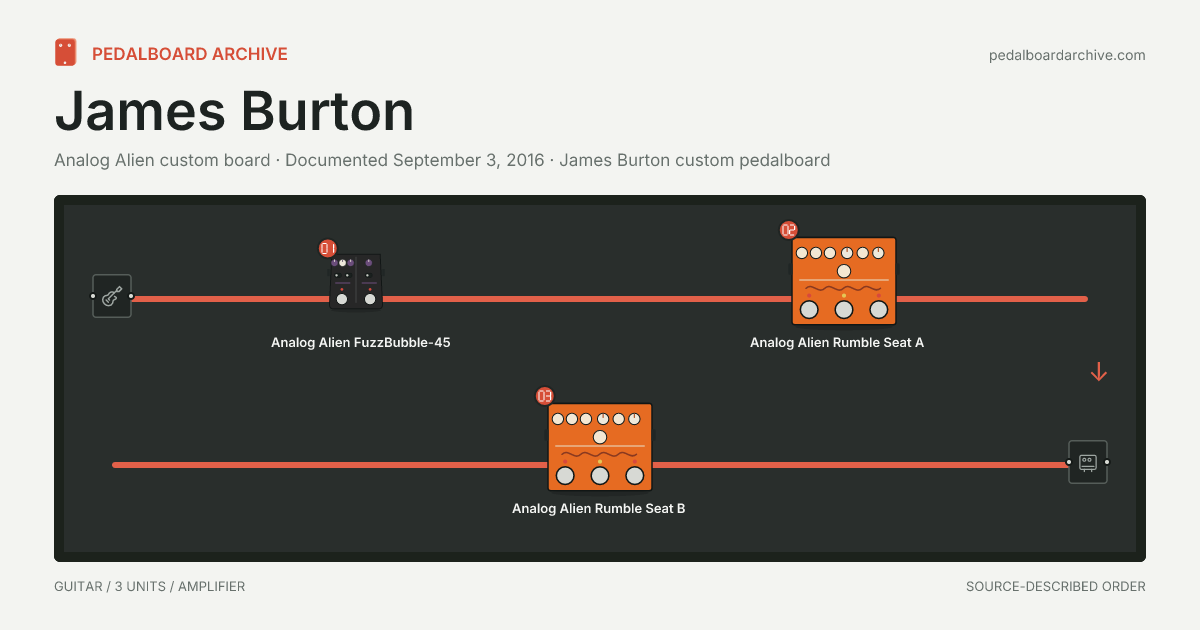

Burton's compact custom board placed a dual fuzz/overdrive first, followed by two independently configured overdrive-delay-reverb units.
Signal path / A
Analog Alien custom board
Builder-documented and photographed exact board
Documented equipment · Source-described order · Serial path
Analog Alien states that it built this board for Burton, identifies both Rumble Seats and explicitly places the FuzzBubble-45 at the front end; its published photograph confirms the three enclosures. The two Rumble Seats are identical models with visibly different settings, so they are represented separately without guessing which songs or individual sections each setting served. Burton's earlier Guitar Player interview documents his selective approach to effects, and Vintage Guitar provides an independent later career interview; neither is used to back-project this 2016 board into his Elvis or Ricky Nelson periods.
