Pedalboard / 029
Jonny Greenwood

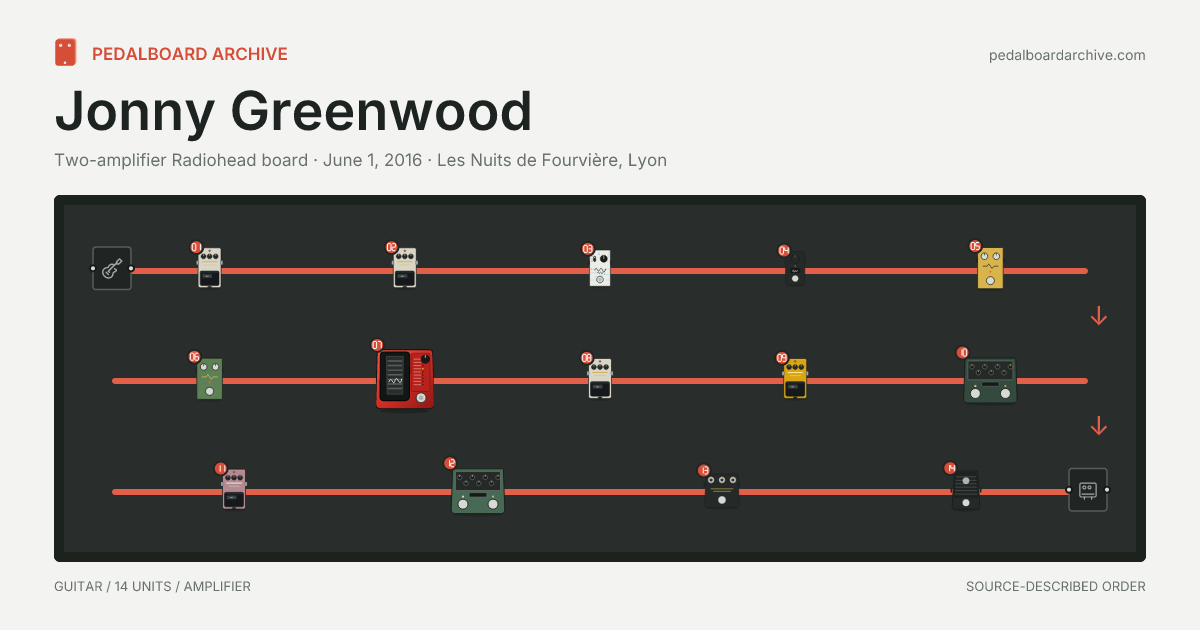

A shared chain of sustain, modulation, filtering and pitch effects split into a time-based clean path and a distortion-and-volume path feeding separate amplifiers.
Signal path / A
Two-amplifier Radiohead board
Photographed board · source-mapped split routing
Documented equipment · Source-described order · Split output path

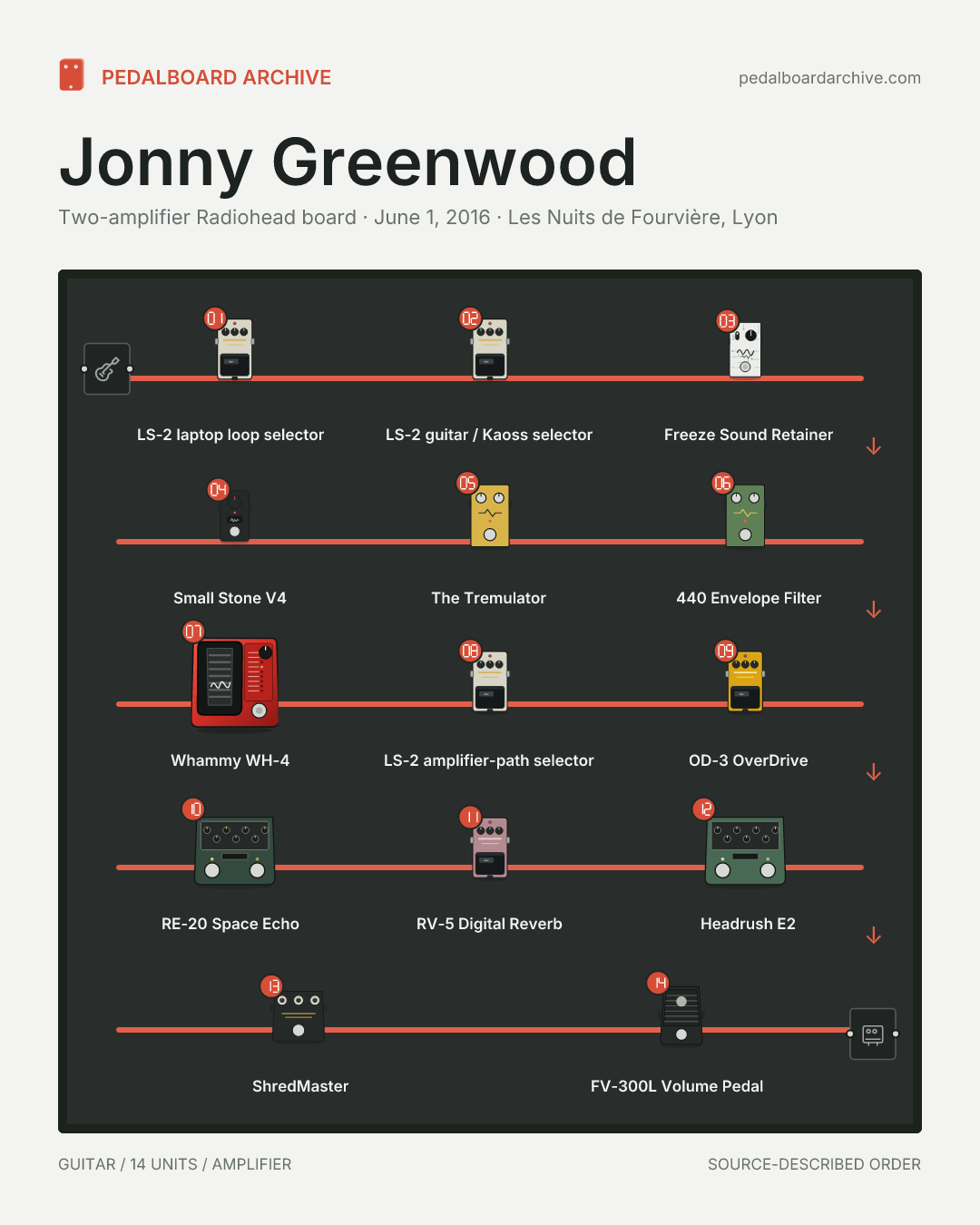

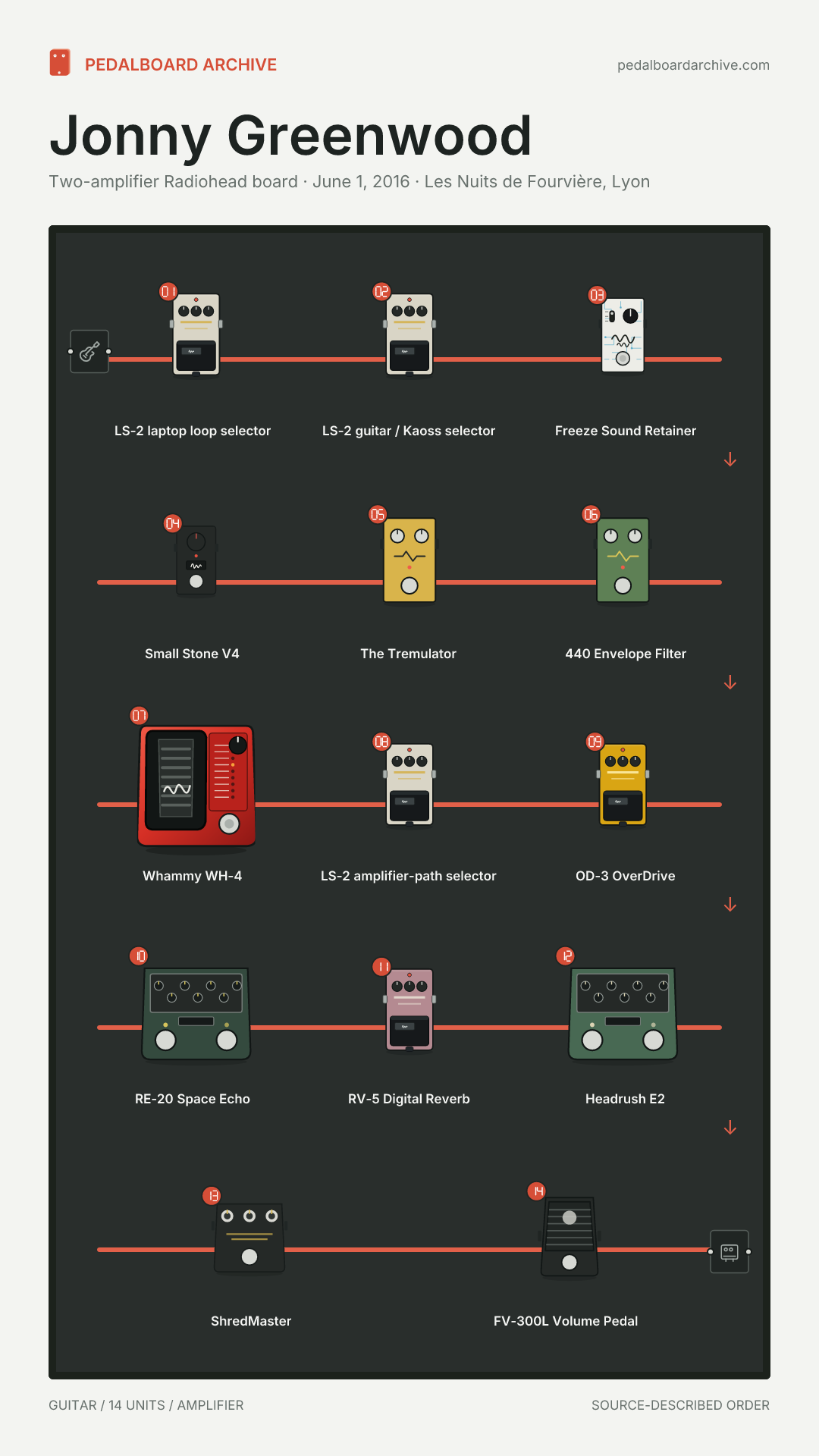

The specialist source publishes the exact signal order from the independently photographed Lyon board. Positions 1–8 are shared, positions 9–12 form output A to the Vox AC30, and positions 13–14 form output B to the Fender Eighty-Five. The laptop loop and front-of-house-fed Kaoss Pad are external branches controlled by the first two line selectors and are described rather than drawn. The TU-3 tuner between the volume pedal and distorted amplifier is omitted as a utility, not an effect.
