Jimmie VaughanPedalboard, 2012

Jimmie Vaughan's 2012 board was two devices: a stock Boss TR-2 tremolo, his only floor effect, and a Voodoo Lab Amp Selector feeding two Grammatico Kingsville amps.

Board
Minimal Grammatico touring board
Context
Premier Guitar Rig Rundown
Board date
Evidence
Documented equipment · 2 cited sources
Order
Source-described
Scope
Exact board snapshot
Routing
Split output path
Audited
Signal
2 units · Guitar to amplifier

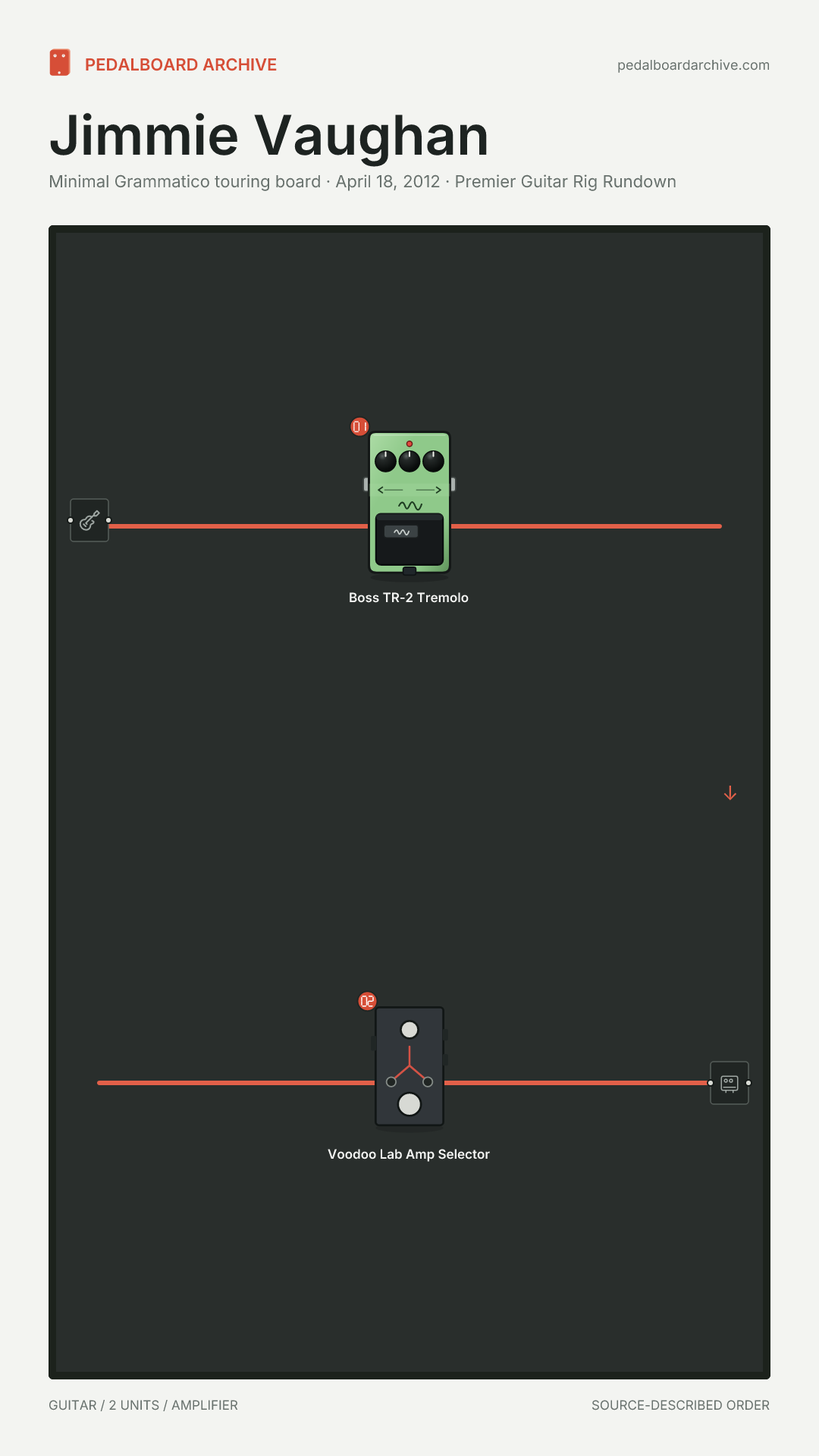

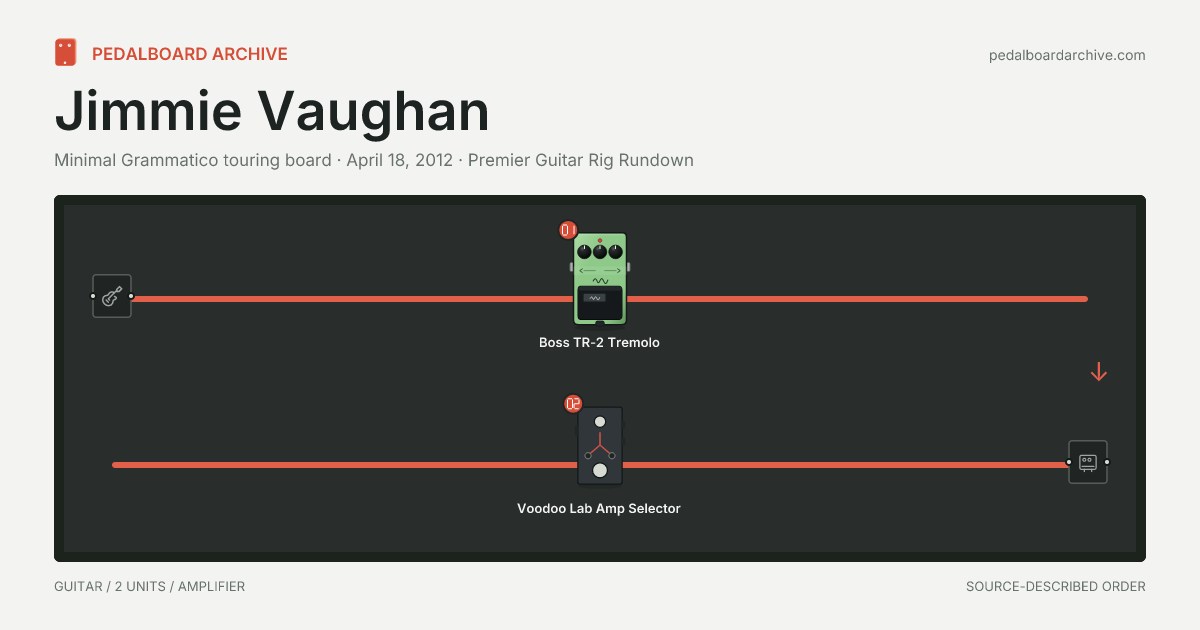

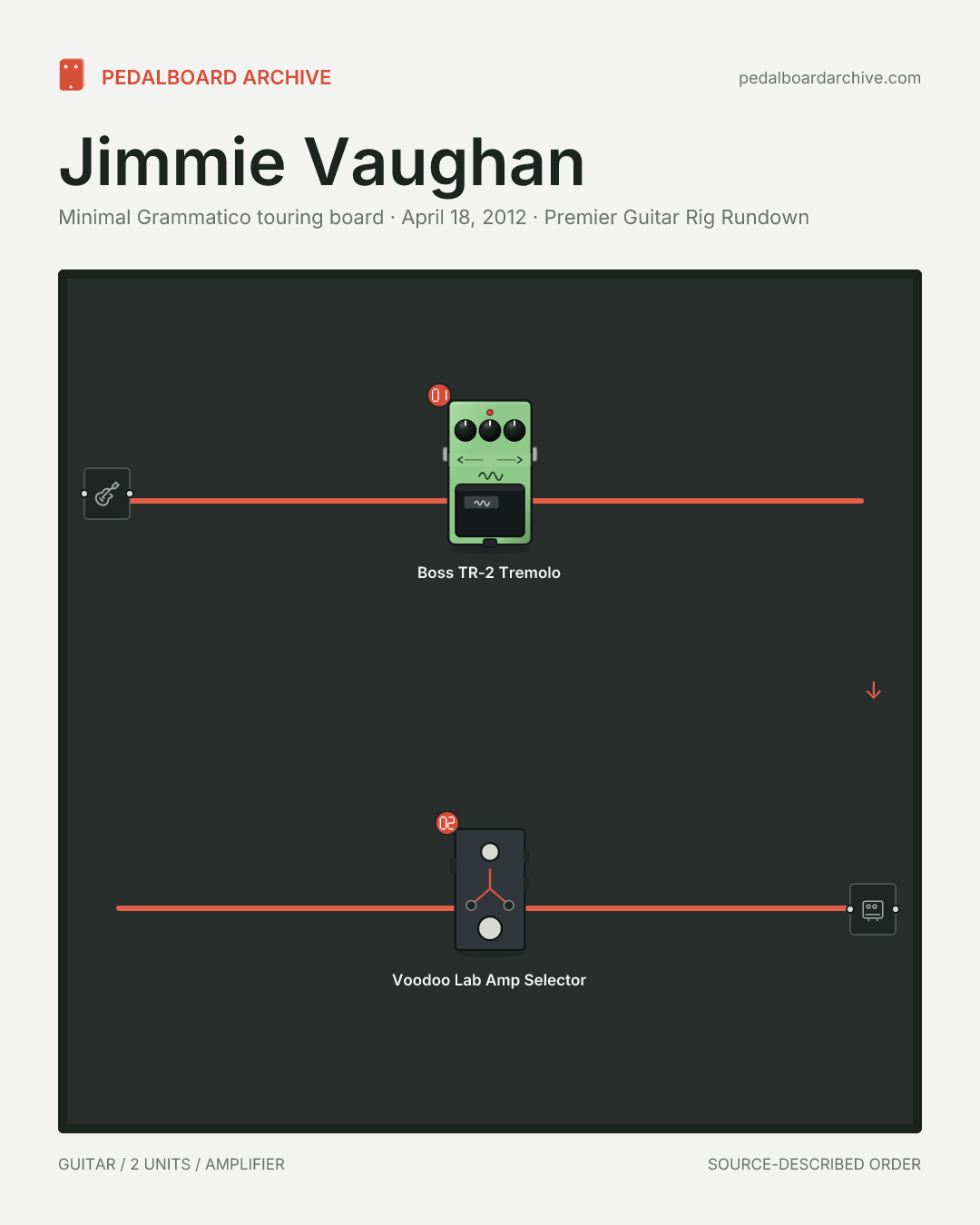

Minimal Grammatico touring board
