Pedalboard / 003
Joe Bonamassa
A large blues-rock system that moves from wah and tremolo into a split amplifier path, layered gain, flanging, delay and rotary speaker simulation.

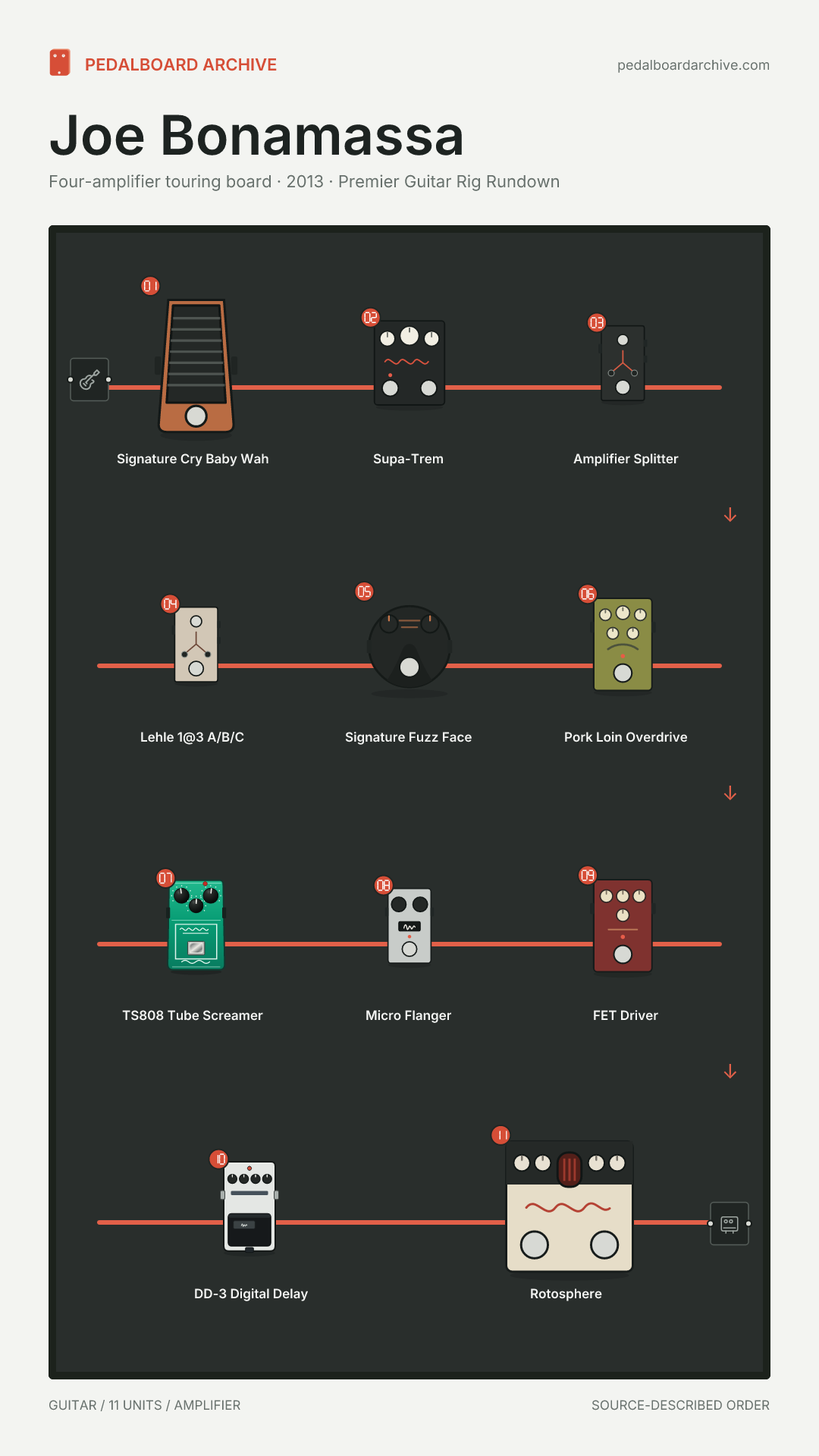

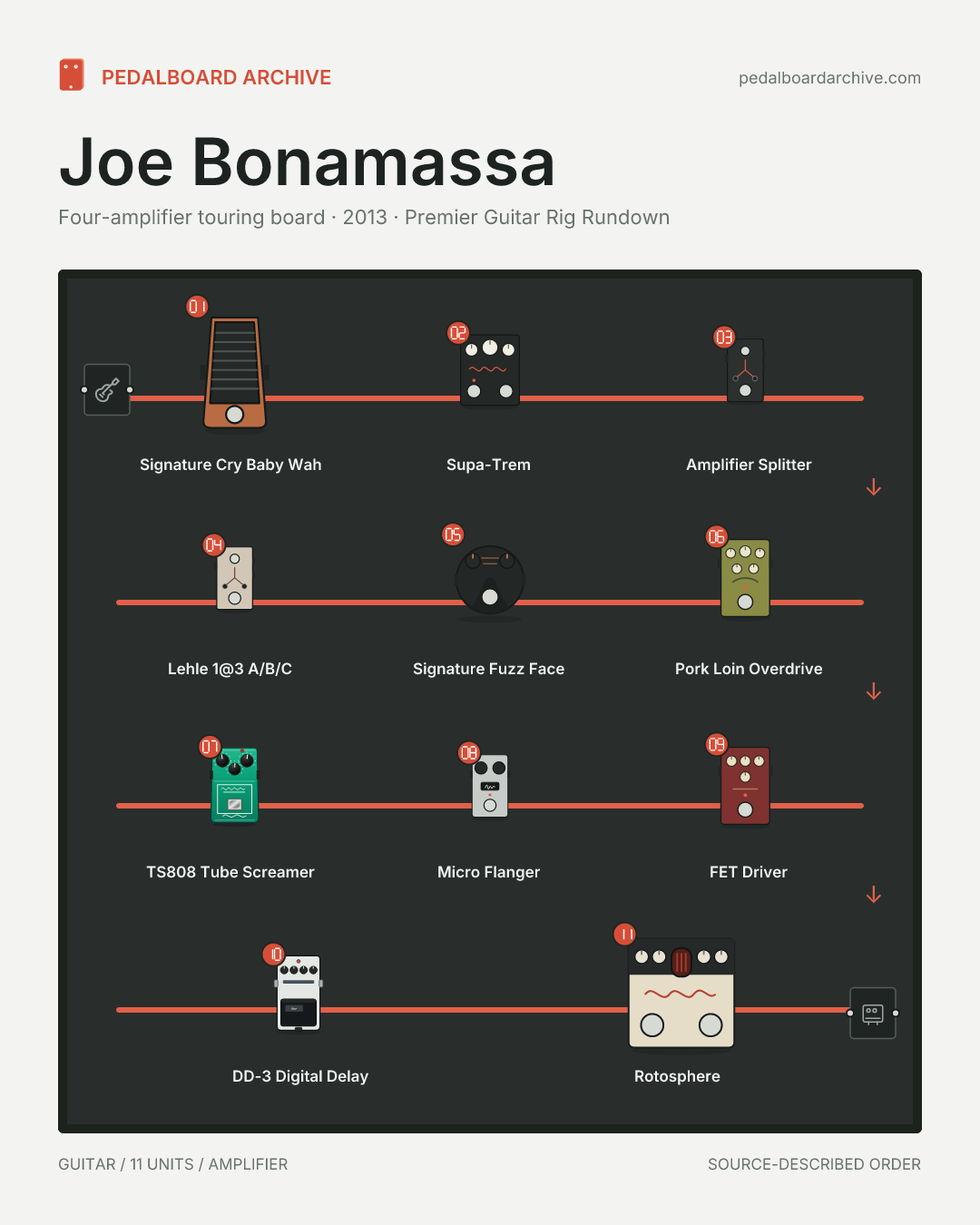

Signal path / A
Four-amplifier touring board
Documented signal chain · amp-loop effects marked
Documented equipment · Source-described order · Split output path
Premier Guitar documents the front-end order explicitly. The DD-3 and Rotosphere lived in the loop of the clean Marshall path; they are shown after the front-end chain here and marked as amplifier-loop effects.
