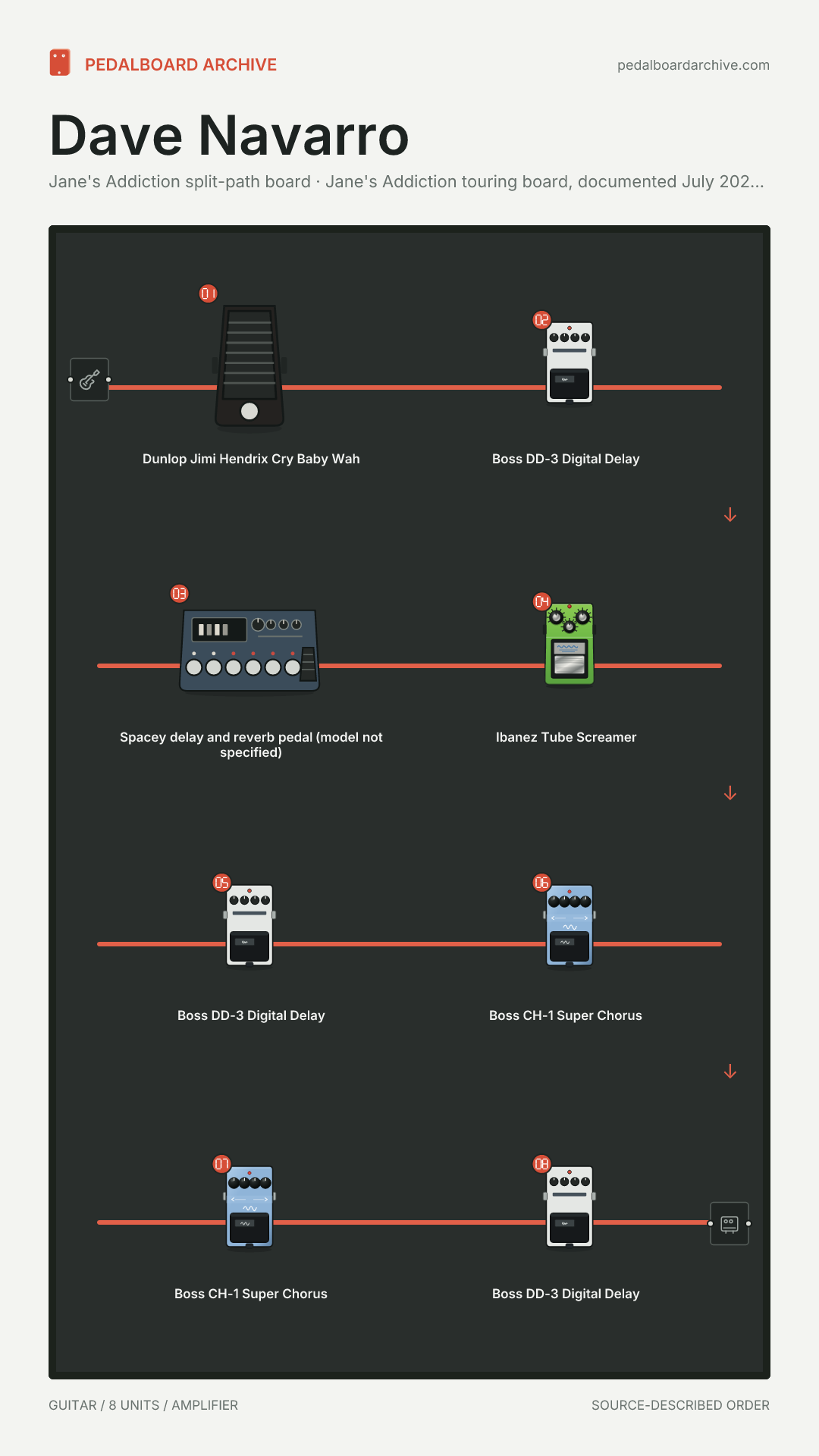

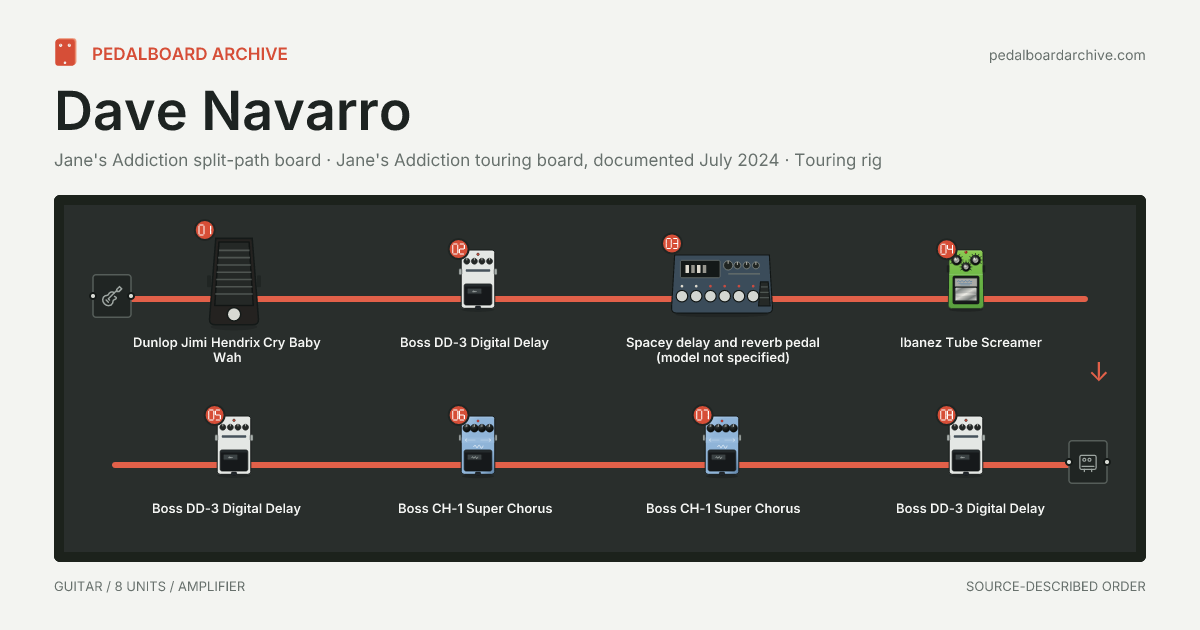

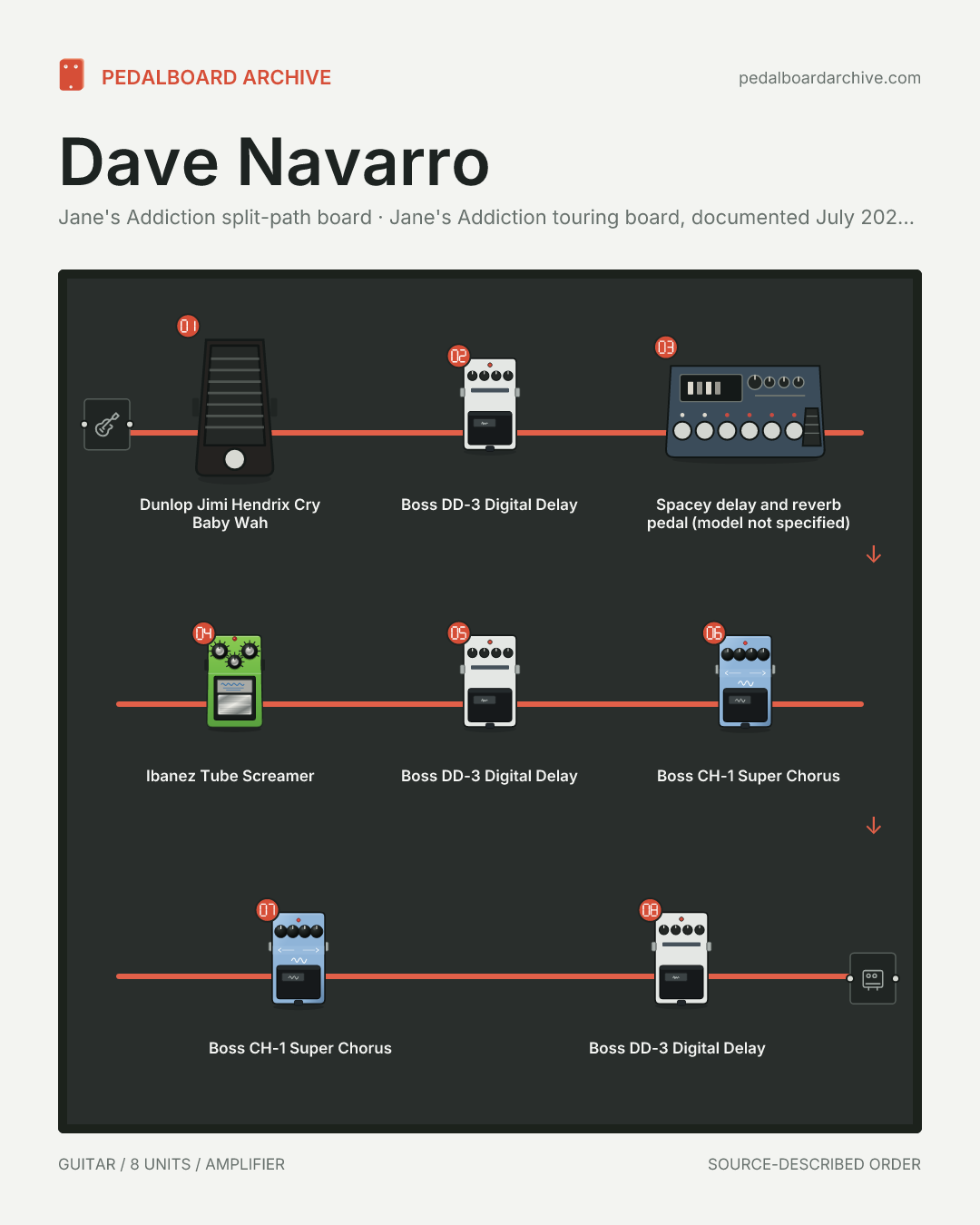

Dave Navarro's 2024 Jane's Addiction pedalboard splits into clean and dirty amplifier paths. It contains a Hendrix Cry Baby wah, an Ibanez Tube Screamer, three Boss DD-3 delays, two CH-1 Super Choruses and an unidentified ambience pedal. Technician Dan Cleary explains the routing: one DD-3 makes noise, one handles solos and one adds clean-path repeats. The tuner and A/B switcher are omitted from the effects diagram.
Jane's Addiction split-path board
Order evidence: A source states the sequence
Inside the rig · 8 units
Pedal roles & evidence
How each unit fits Dave Navarro's 2024 setup. Board-specific roles and the evidence behind each identification and position.
Source-described orderIdentity and position are evidenced separately. Reconstructed positions are not observed connections.
Filter & EQ
Dunlop Jimi Hendrix Cry Baby Wah
Front of amp
Role in this rig
Opens the board with the filter sweep before anything else touches the signal.
- Identity
- Documented
- Position
- Documented
Delay & Echo
Boss DD-3 Digital Delay
Front of amp
Role in this rig
Used for hand-tweaked delay-time sweeps and Hold-mode noise rather than musical repeats.
- Identity
- Documented
- Position
- Documented
Reverb & Ambience
Spacey delay and reverb pedal (model not specified)
Front of amp
Role in this rig
Adds the wide ambient wash ahead of the overdrive stage.
The technician describes a spacey delay and reverb pedal without naming a manufacturer or model, and the 2019 photographic documentation predates it.
- Identity
- Unresolved
- Position
- Documented
Gain
Ibanez Tube Screamer
Front of amp
Role in this rig
Supplies the overdrive between the ambient stage and the solo delay.
The 2024 chain names only an overdrive at this position; the 2019 photographic documentation identifies it as an Ibanez Tube Screamer.
- Identity
- Visually identified
- Position
- Documented
Delay & Echo
Boss DD-3 Digital Delay
Front of amp
Role in this rig
The solo delay, usually engaged together with the dirty-side chorus.
- Identity
- Documented
- Position
- Documented
Modulation
Boss CH-1 Super Chorus
Drive branch
Role in this rig
Thickens the solo tone when stacked with the solo delay.
- Identity
- Documented
- Position
- Documented
Modulation
Boss CH-1 Super Chorus
Clean branch
Role in this rig
Provides the shimmering clean chorus that carries the arpeggiated parts.
- Identity
- Documented
- Position
- Documented
Delay & Echo
Boss DD-3 Digital Delay
Clean branch
Role in this rig
Adds the clean-path repeats at a different time from the solo delay.
- Identity
- Documented
- Position
- Documented
Documented equipment · Documented order · Split output path
Navarro's technician Dan Cleary walks the board for BOSS and states the order from the wah through the tuner, the noise delay, the ambience unit, the overdrive and the solo delay, then across the A/B switcher into the separate clean and dirty chains. Stompbox Book photographed the same board independently five years earlier and confirms the three DD-3s, both Super Choruses, the wah and the clean and dirty selector, and identifies the overdrive as an Ibanez Tube Screamer, which the 2024 account leaves unnamed. The BOSS TU-3 tuner and the A/B switcher are omitted as utility and routing devices. The ambience unit is described only by effect, not by model.
