Pedalboard / 036
Buddy Guy
Guy's intentionally spare touring route used his two-voice signature wah, a green mid-hump overdrive and a seven-output splitter feeding two stage amplifiers.
Signal path / A
Wah, overdrive and amplifier split
Guitar-tech-described signal path
Documented equipment · Source-described order · Split output path

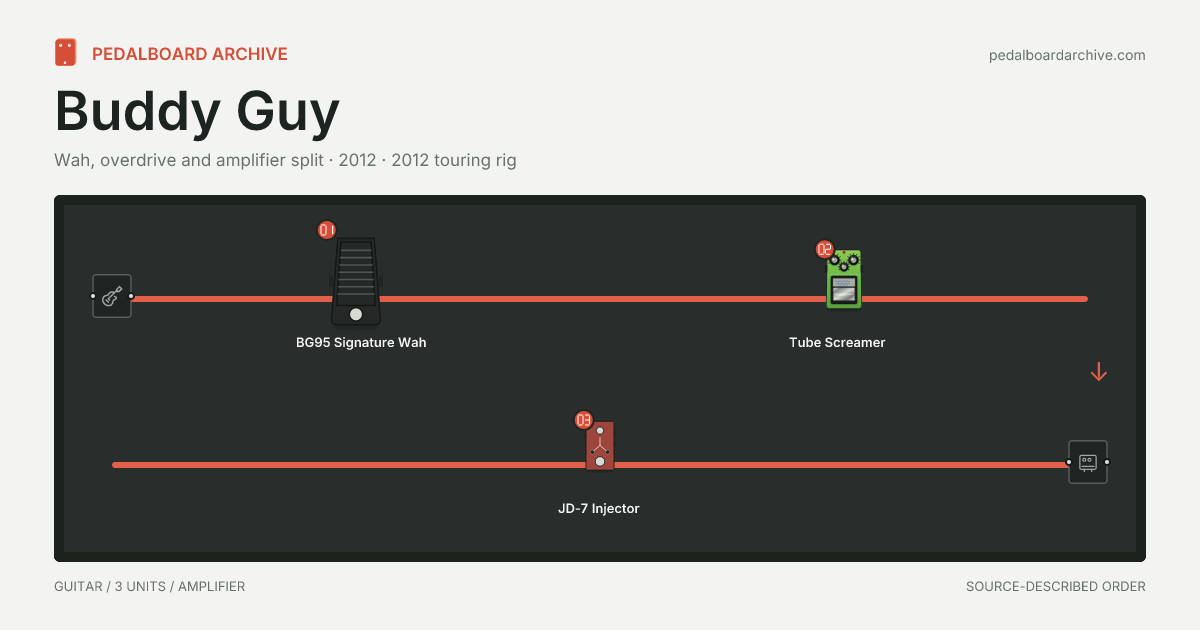

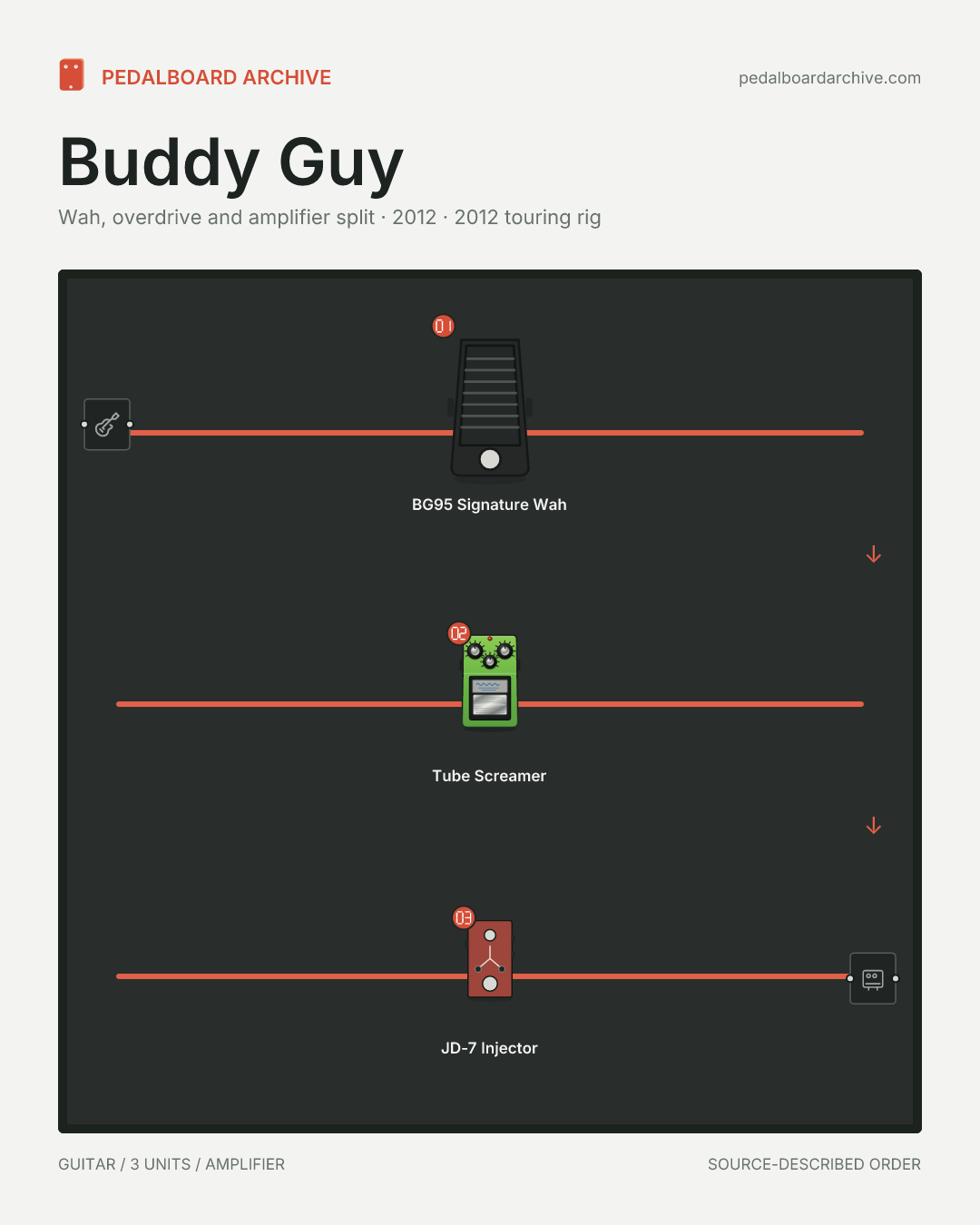

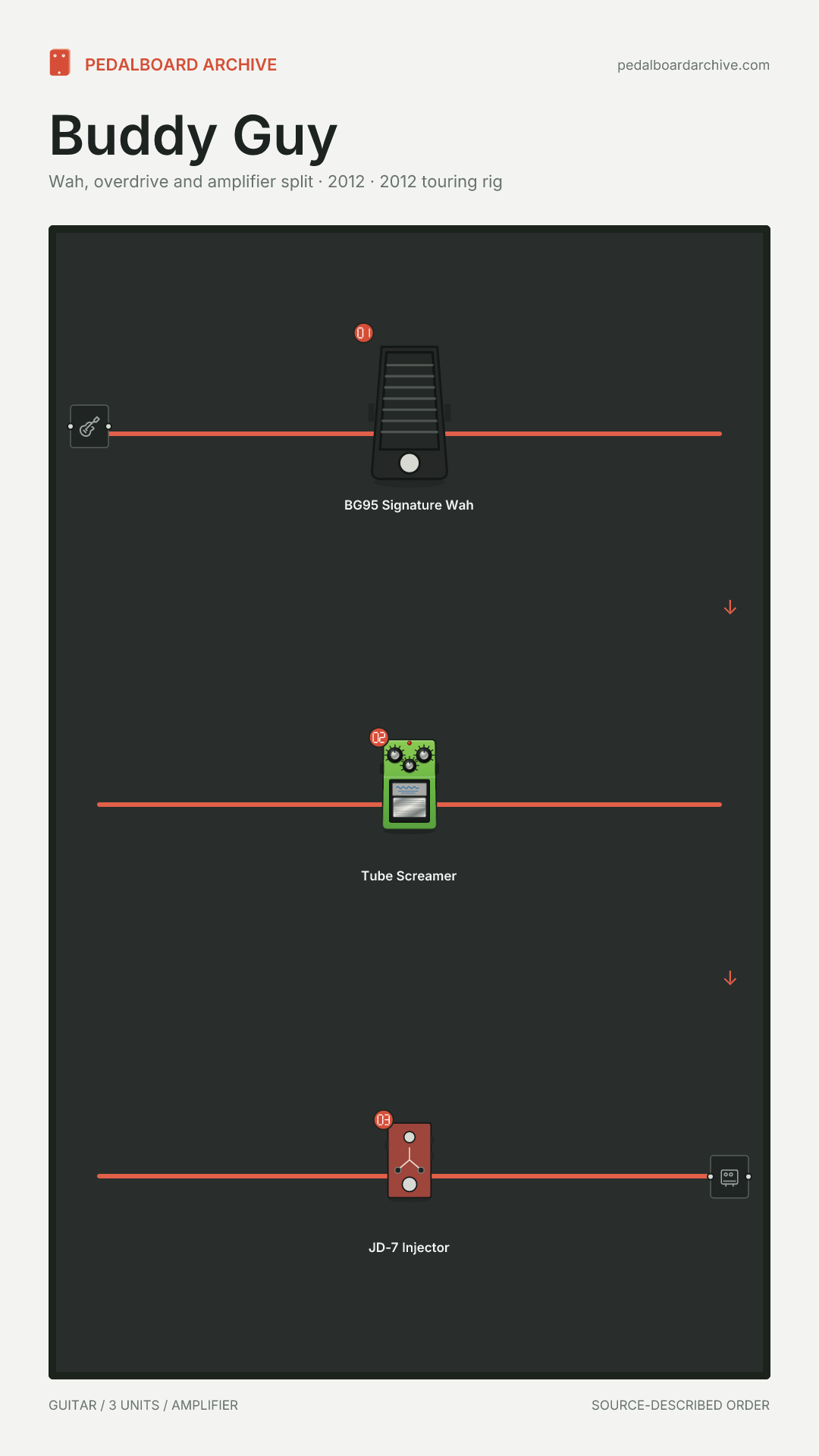

Guitar tech Gilbert Garza described the order as wireless and cable into the signature wah, then Tube Screamer, then JD-7 splitter. The wireless receiver is infrastructure and is omitted. A 2009 first-person interview documents the immediately preceding wah-only approach, while Garza explains that the later overdrive supplied extra gain and sustain into cleaner amplifiers; the board is therefore dated to the documented 2012 configuration rather than generalized across Guy's career.
