Carlos SantanaPedalboard, 2014
Carlos Santana played the Ryman in 2014 with four units: an LD1 line driver, an RMC4 Picture Wah, a three-way splitter feeding his stage amps, and a D-Two multitap delay in the Bludotone effects loops.
Minimal split-amplifier board
Order evidence: A source states the sequence
Inside the rig · 4 units
Pedal roles & evidence
How each unit fits Carlos Santana's 2014 setup. Board-specific roles and the evidence behind each identification and position.
Source-described orderIdentity and position are evidenced separately. Reconstructed positions are not observed connections.
Routing & Control
LD1 Line Driver
Front of amp
Role in this rig
Restores and stabilizes the signal before the wah and multi-amplifier split.
- Identity
- Documented
- Position
- Documented
Filter & EQ
RMC4 Picture Wah
Front of amp
Role in this rig
Adds the vocal filter sweep used selectively for melodic emphasis.
- Identity
- Documented
- Position
- Documented
Routing & Control
AC-powered three-way splitter/mute
Front of amp
Role in this rig
Splits the front-end signal toward the rack-mounted amplifier selectors and separate stage amplifiers.
- Identity
- Documented
- Position
- Documented
Delay & Echo
D-Two Multitap Rhythm Delay
Amp loop
Role in this rig
Provides time-based effects in the effects loops of the two Bludotone amplifier heads.
- Identity
- Documented
- Position
- Documented
Documented equipment · Documented order · Split output path

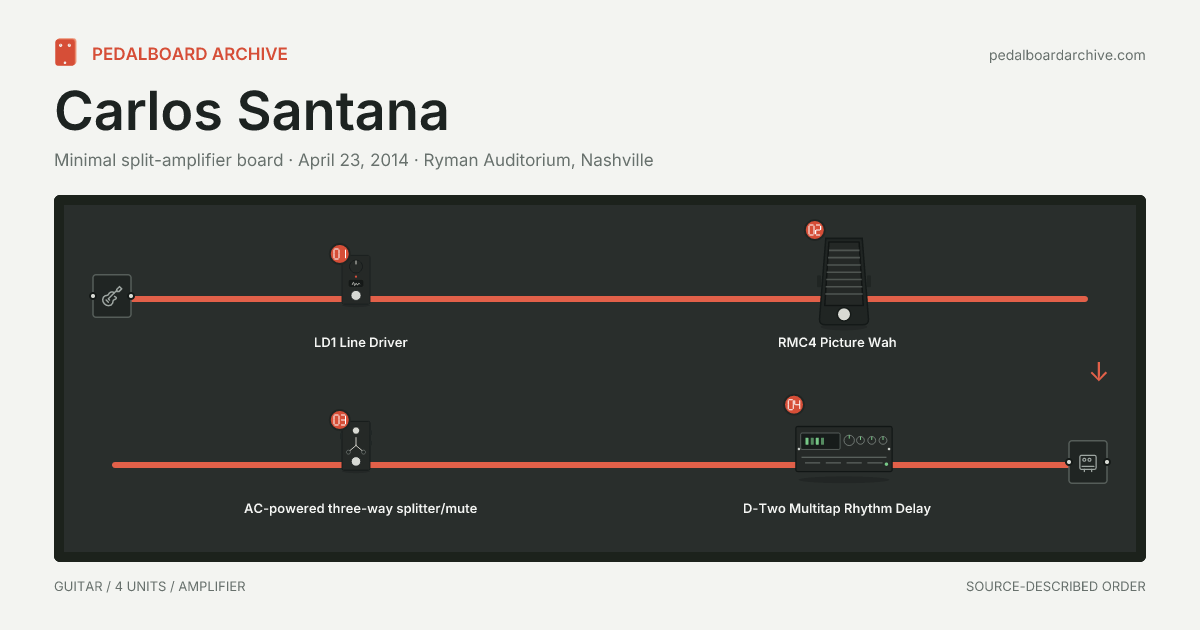

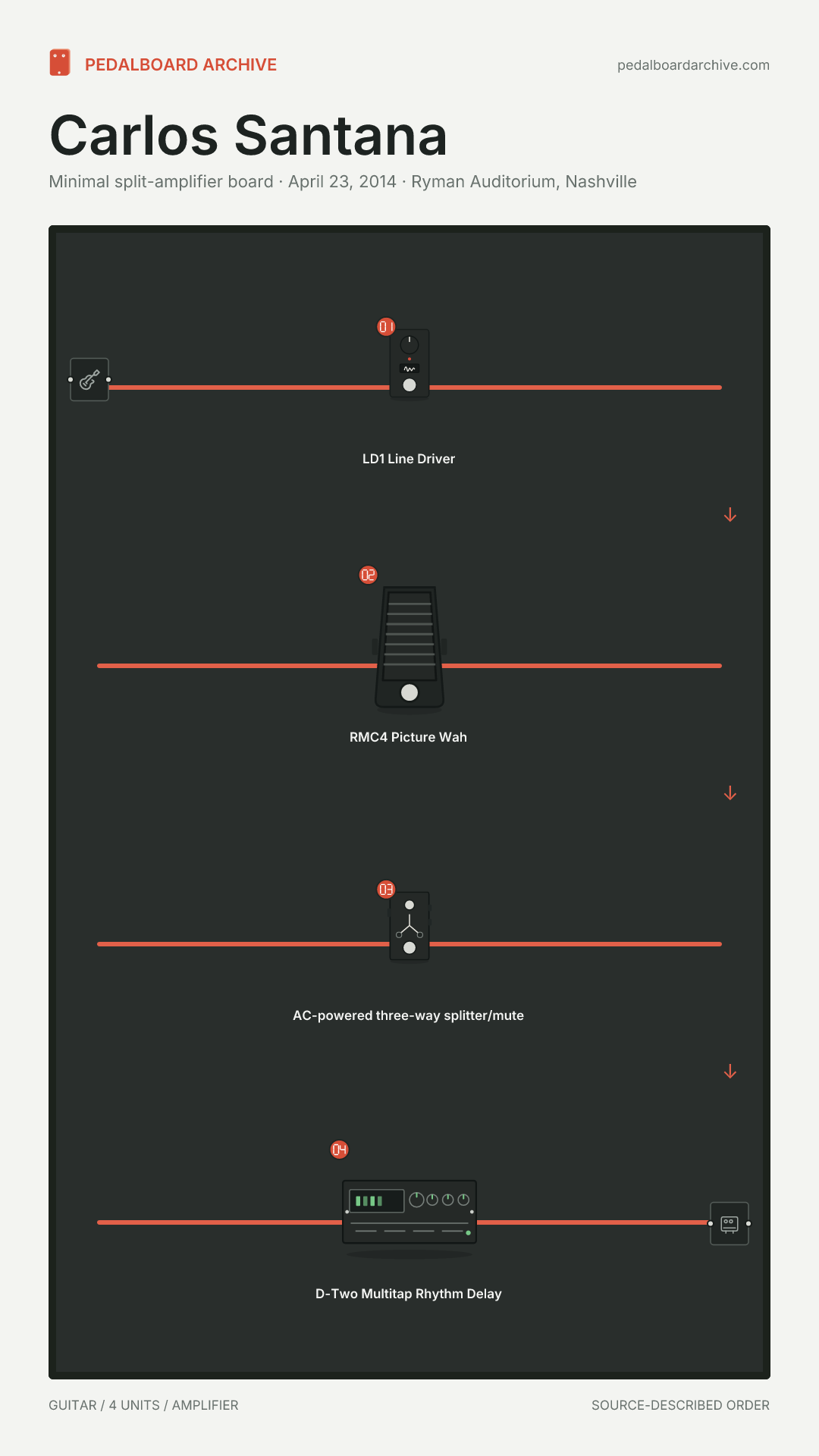

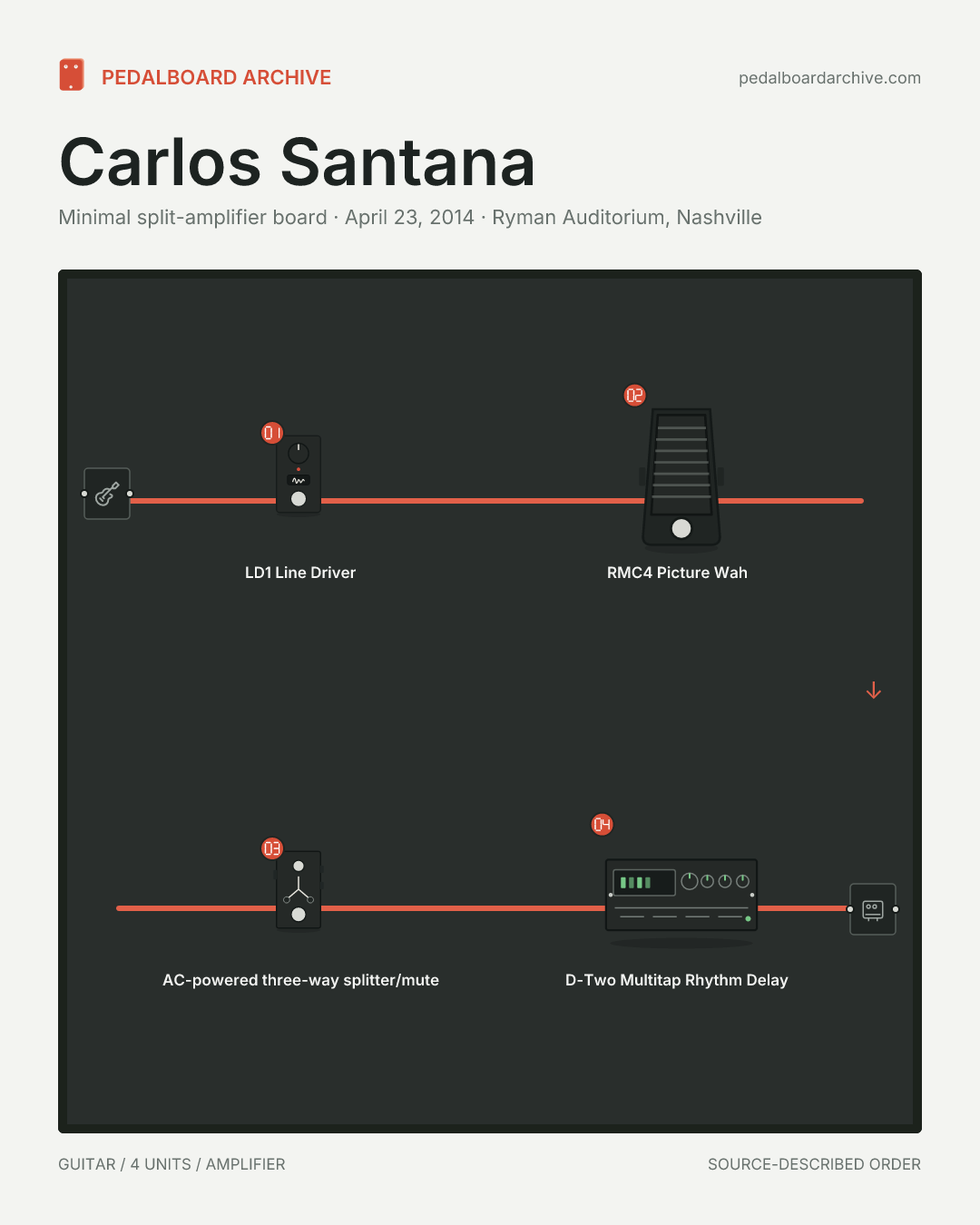

Guitar tech Ed Adair explicitly described the front-end order as 50-foot cable, LD1 line driver, RMC4 wah and three-way splitter. The D-Two is shown after the split only as a separate effects-loop branch; it does not sit in series after every amplifier output. Tuner and remote amp selectors are control infrastructure and are omitted.
