Pedalboard / 141
Matt Schofield
Schofield stacked a Providence overdrive and Centaur, inserted an external wah, then ran a Deep Blue Delay into an isolated two-amplifier output.
Signal path / A
Vertex dual-amplifier board

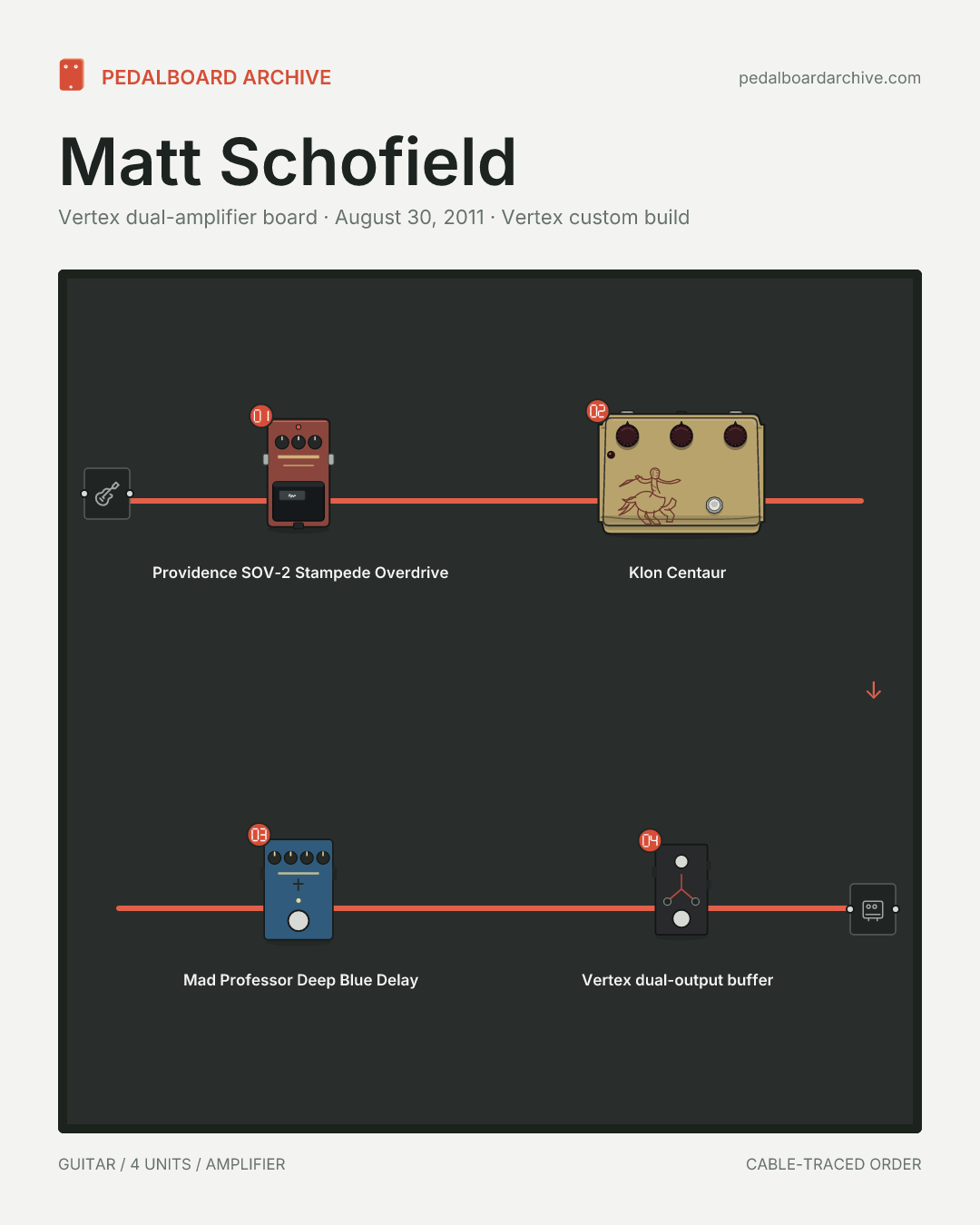

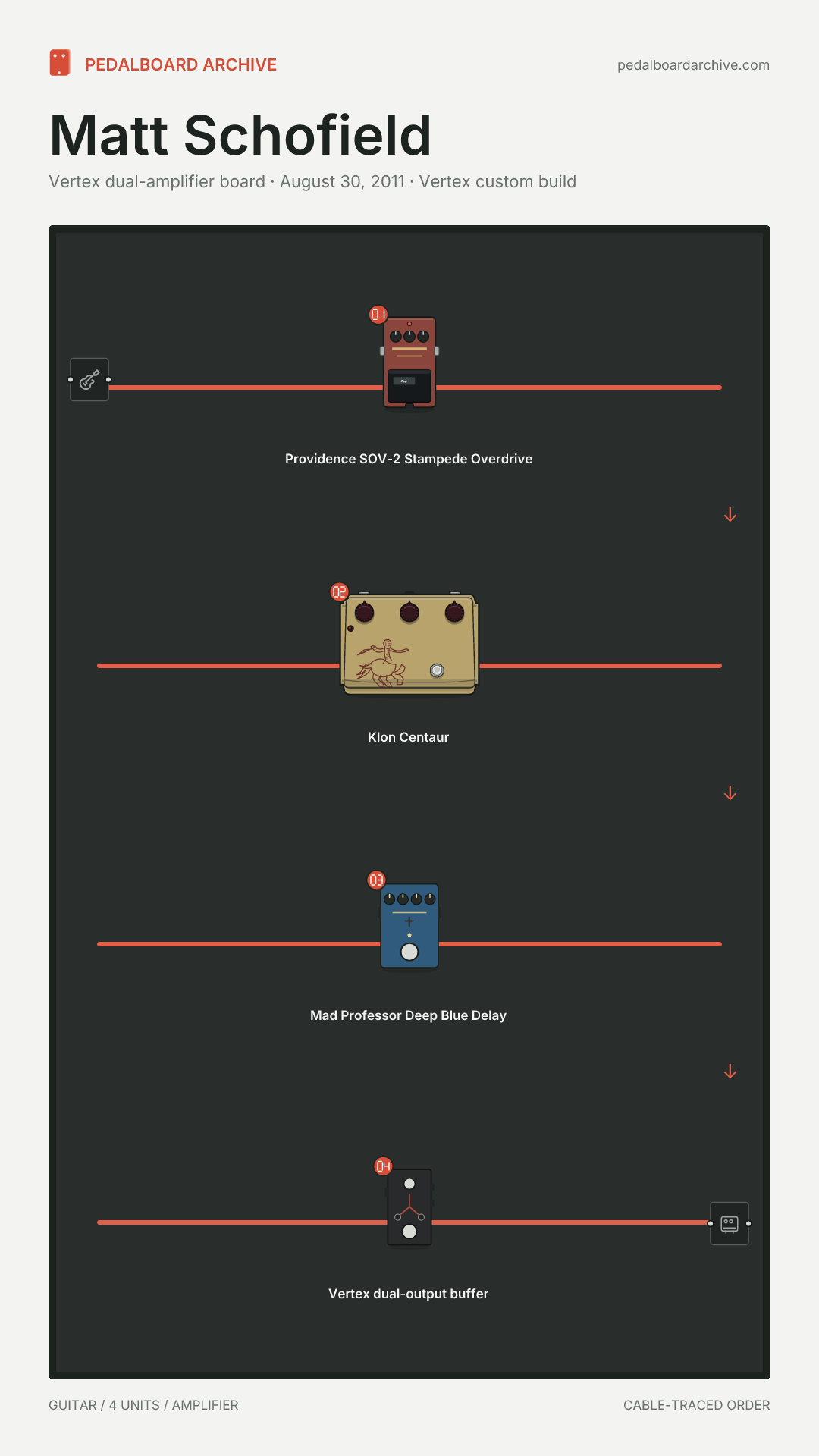

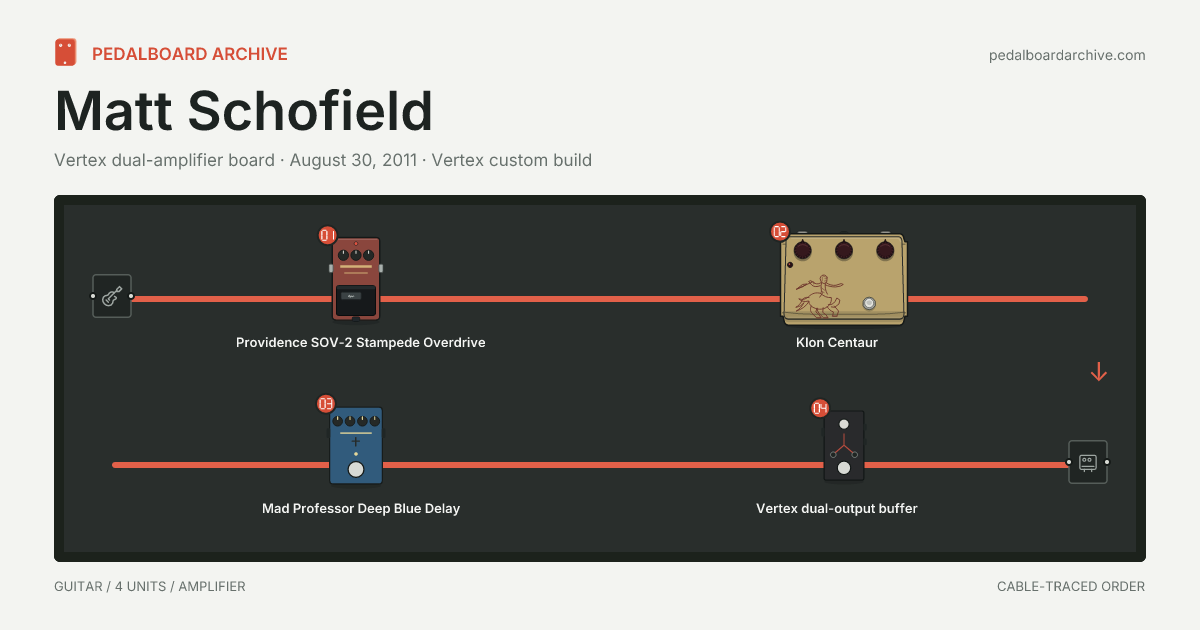

Builder-mapped signal path
Documented equipment · Cable-traced order · Split output path
Vertex documents the complete connection order and dual-output design. The external wah is part of the route, but the builder does not name its model, so it is not assigned a false identity in the visual chain. Input and output buffers are represented only where the final splitter materially explains the route.
