Stevie Ray VaughanPedalboard, 1989
Stevie Ray Vaughan's late-era chain, 1988 to 1990, put five effects into a custom five-loop switcher: a Vox V846 wah, a Fuzz Face, an Octavia, a Uni-Vibe and an Ibanez TS10 Tube Overdrive.
Late-era effects chain
Order evidence: No source publishes this sequence; the order is reconstructed
Inside the rig · 6 units
Pedal roles & evidence
How each unit fits Stevie Ray Vaughan's 1989 setup. Board-specific roles and the evidence behind each identification and position.
Reconstructed orderIdentity and position are evidenced separately. Reconstructed positions are not observed connections.
Routing & Control
Custom Five-loop Switcher
Integrated board
Role in this rig
Brings multiple effect loops in and out without requiring the pedals to remain in one fixed serial chain.
- Identity
- Documented
- Position
- Reconstructed
Filter & EQ
V846 Wah
Switched loop
Role in this rig
Shapes the attack before the late-era fuzz and octave effects in Vaughan’s Hendrix-influenced setup.
- Identity
- Documented
- Position
- Reconstructed
Gain
Fuzz Face
Switched loop
Role in this rig
Adds the saturated, cleanup-sensitive fuzz Vaughan adopted for his late Hendrix-inspired material.
- Identity
- Documented
- Position
- Reconstructed
Gain
Octavia
Switched loop
Role in this rig
Receives the wah and fuzz signal to produce the cutting octave sound heard in Vaughan’s later shows.
- Identity
- Documented
- Position
- Reconstructed
Modulation
Uni-Vibe (Original black floor unit)
Switched loop
Role in this rig
Adds the pulsing, asymmetrical modulation used for Hendrix-derived textures.
- Identity
- Documented
- Position
- Reconstructed
Gain
TS10 Tube Overdrive
Switched loop
Role in this rig
Supplies the focused midrange gain Vaughan used to push his clean, high-headroom amplifier rig.
- Identity
- Documented
- Position
- Reconstructed
Documented equipment · Reconstructed order · Switchable effects loops

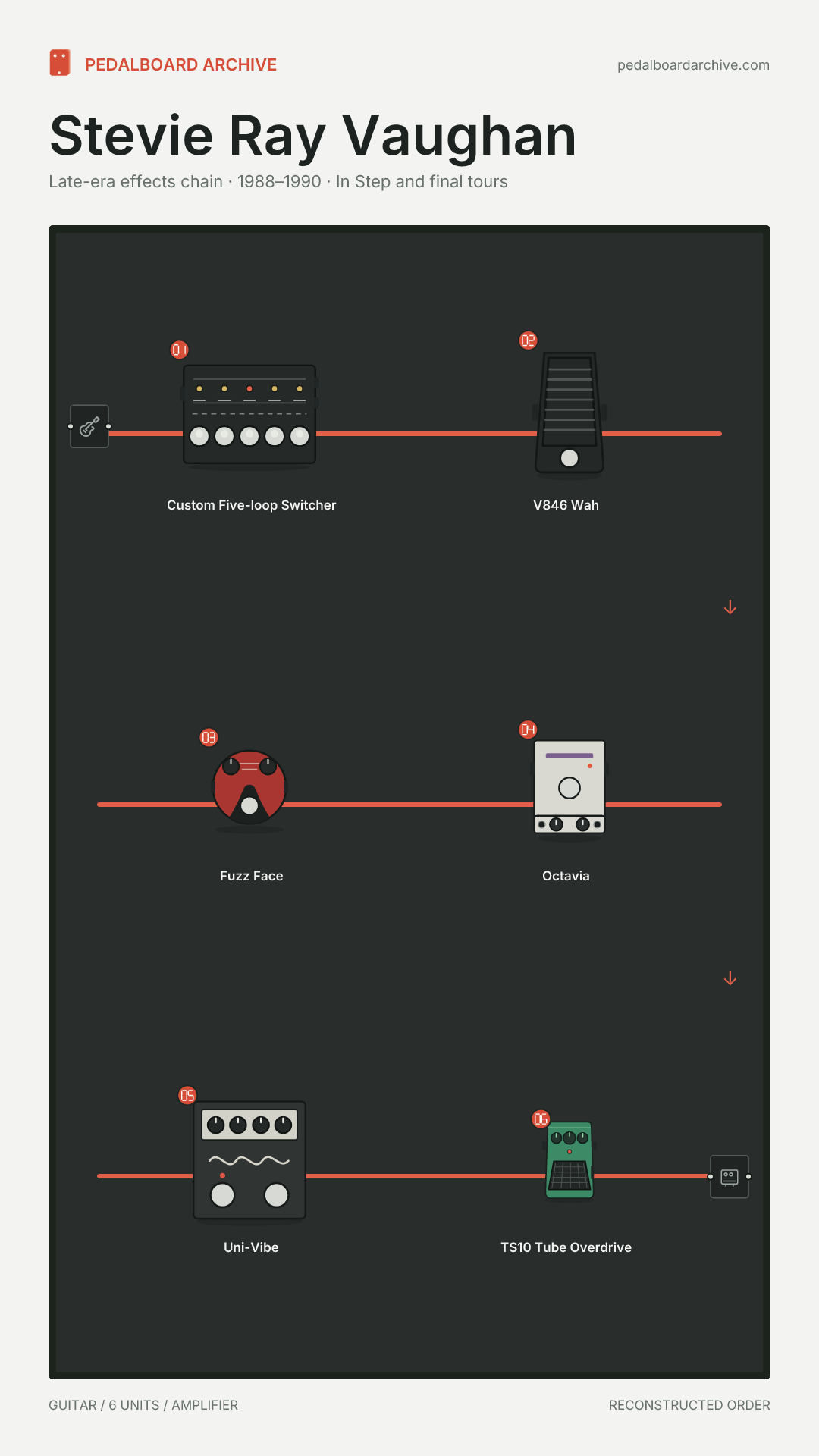

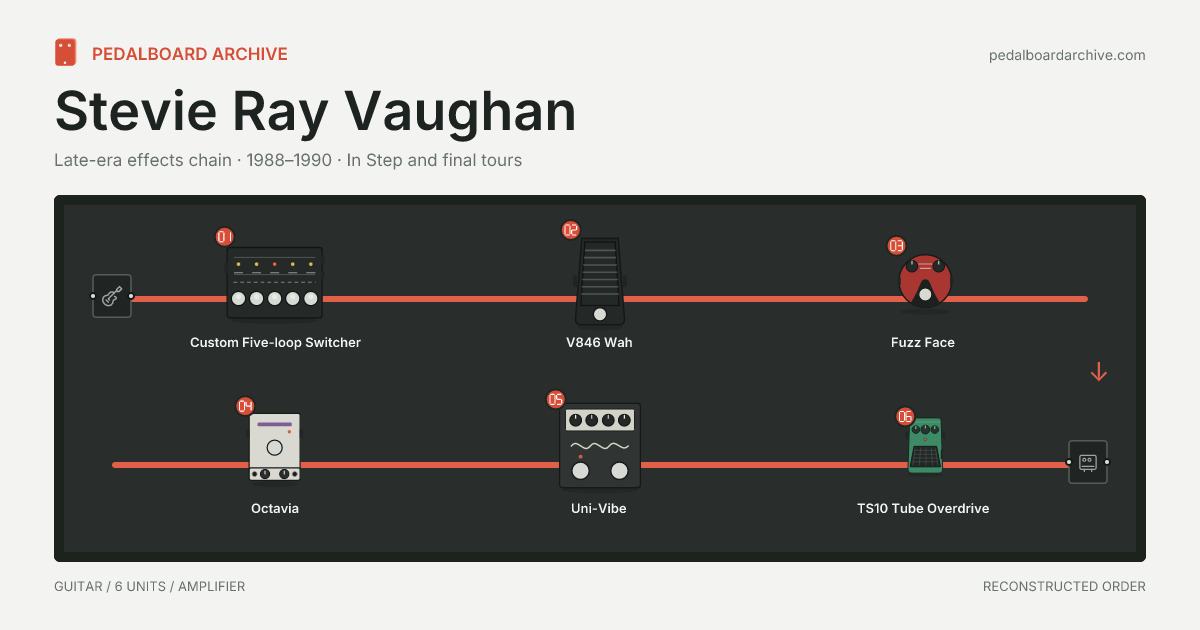

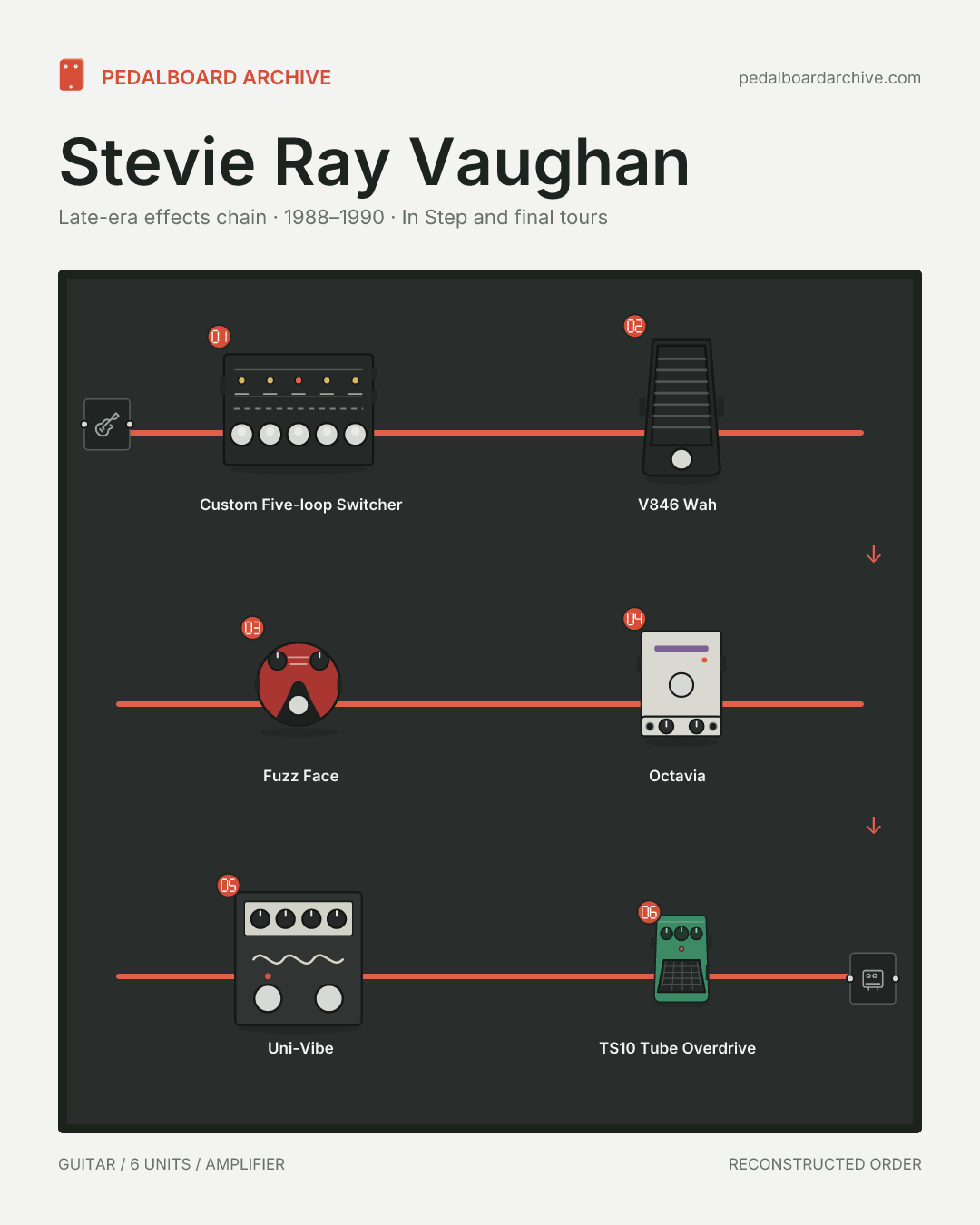

The late-era effect set is documented, but it was not one permanently active serial chain. Photo-based research shows a custom five-switch loop controller replacing the simpler earlier selector, while the sources place the Octavia after wah and fuzz in most cases and document combinations with the Tube Screamer. This schematic flattens those switchable loops into a readable order; the exact loop assignment changed and remains unverified. Vibratone and delay control switches are excluded because they did not carry the guitar signal.
No source publishes this sequence. The units are ordered by conventional signal-chain practice, and any documented routing zone is kept as recorded.
