John FrusciantePedalboard, 1999
John Frusciante's Californication-era board is eight pedals: an Ibanez WH-10 wah, a Micro Synthesizer, a Boss FZ-3, a Russian Big Muff, a DS-1 and DS-2, an MXR Phase 90, and a CE-1 Chorus Ensemble left switched off for its preamp and stereo outputs.
Californication era board
Order evidence: No source publishes this sequence; the order is reconstructed
Inside the rig · 8 units
Pedal roles & evidence
How each unit fits John Frusciante's 1999 setup. Board-specific roles and the evidence behind each identification and position.
Reconstructed orderIdentity and position are evidenced separately. Reconstructed positions are not observed connections.
Filter & EQ
WH-10 Wah
Front of amp
Role in this rig
The wah behind Frusciante's most recognisable Californication figures.
Both sources name it. Ground Guitar notes the mode switch: "in this song in particular, John used the bass mode", on "Get on Top".
- Identity
- Documented
- Position
- Reconstructed
Pitch & Synth
Micro Synthesizer
Front of amp
Role in this rig
Provides the synthesised texture used on Savior.
Named by Ground Guitar only, tied to a single song rather than to a photographed board, so its presence on the touring board is unconfirmed.
- Identity
- Tentative
- Position
- Reconstructed
Gain
FZ-3 Fuzz
Front of amp
Role in this rig
Carries the fuzz on Scar Tissue and I Like Dirt.
- Identity
- Visually identified
- Position
- Reconstructed
Gain
Russian Big Muff Pi
Front of amp
Role in this rig
Supplies the thick sustaining fuzz alongside the smaller Boss units.
- Identity
- Visually identified
- Position
- Reconstructed
Gain
DS-1 Distortion
Front of amp
Role in this rig
One of the two Boss distortions kept on the board at once.
- Identity
- Visually identified
- Position
- Reconstructed
Gain
DS-2 Turbo Distortion
Front of amp
Role in this rig
The main distortion voice, heard on the Parallel Universe outro and Emit Remmus.
Both sources name the DS-2 as the main distortion of this period.
- Identity
- Documented
- Position
- Reconstructed
Modulation
MXR Phase 90
Front of amp
Role in this rig
Adds the phase sweep heard on the Parallel Universe outro.
The two sources disagree on which MXR phaser this is: Mixdown calls it a Phase 90, Ground Guitar a Phase 10/100. A phaser is corroborated by both, the model is not, so it is recorded as an MXR phaser with the dispute left open.
- Identity
- Tentative
- Position
- Reconstructed
Modulation
CE-1 Chorus Ensemble
Front of amp
Role in this rig
Sits at the end as a preamp and stereo splitter, with the chorus itself usually switched off.
Ground Guitar identifies the CE-1 as Frusciante's preamp and stereo output stage. Its account distinguishes that role from use of the chorus, which requires separate song-specific evidence.
- Identity
- Documented
- Position
- Reconstructed
Visually identified equipment · Reconstructed order · Serial path
Two independent gear breakdowns list overlapping versions of this board; neither traces a cable path, so the order follows the archive's convention. One position is placed on evidence rather than convention: the CE-1 sits last because both sources describe it as used for its preamp and stereo output rather than for chorus, which makes it the output stage of the rig. Two units are marked tentative. The sources disagree on the MXR phaser — Mixdown says Phase 90, Ground Guitar says Phase 10/100 — so a phaser is confirmed but the model is not. The Micro Synthesizer is named by one source only and tied to a single song rather than to the photographed board. Frusciante's Marshall Major and Super Bass heads and the Fender Showman sit outside the board and are omitted, as is the 1176 applied at mixdown rather than on stage.
No source publishes this sequence. The units are ordered by conventional signal-chain practice, and any documented routing zone is kept as recorded.
Cited sources
MethodologyQuestions about John Frusciante's 1999 pedalboard
- What pedals did John Frusciante use in 1999?
- This dated entry lists 8 units: WH-10 Wah, Micro Synthesizer, FZ-3 Fuzz, Russian Big Muff Pi, DS-1 Distortion, DS-2 Turbo Distortion, MXR Phase 90, CE-1 Chorus Ensemble. This is the recorded inventory, not a claim that every connection or model identification is confirmed; see the evidence and routing notes.
- What order were John Frusciante's pedals in?

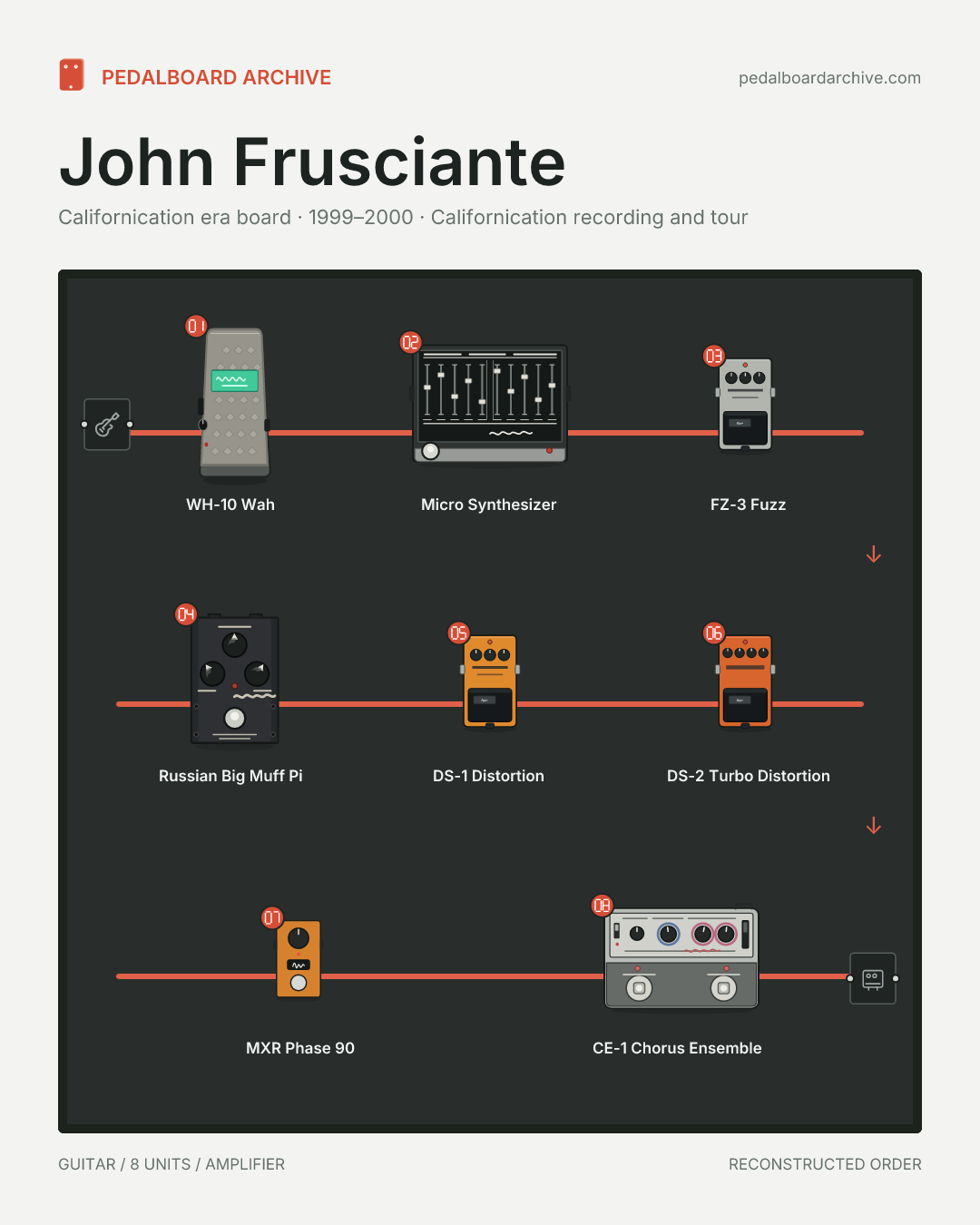

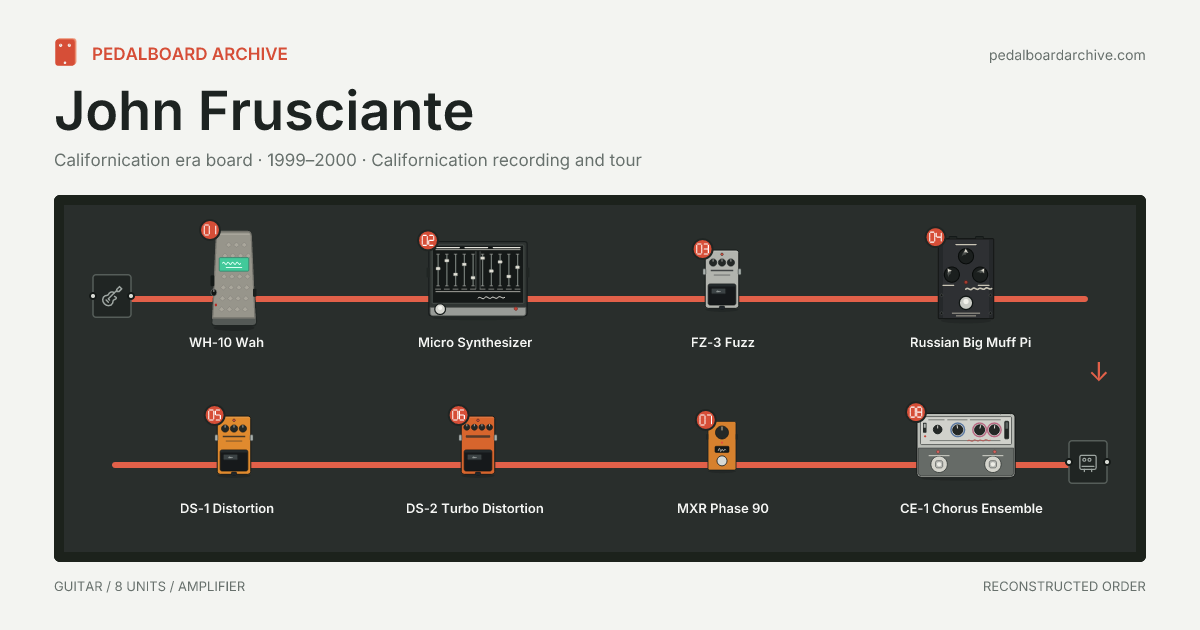

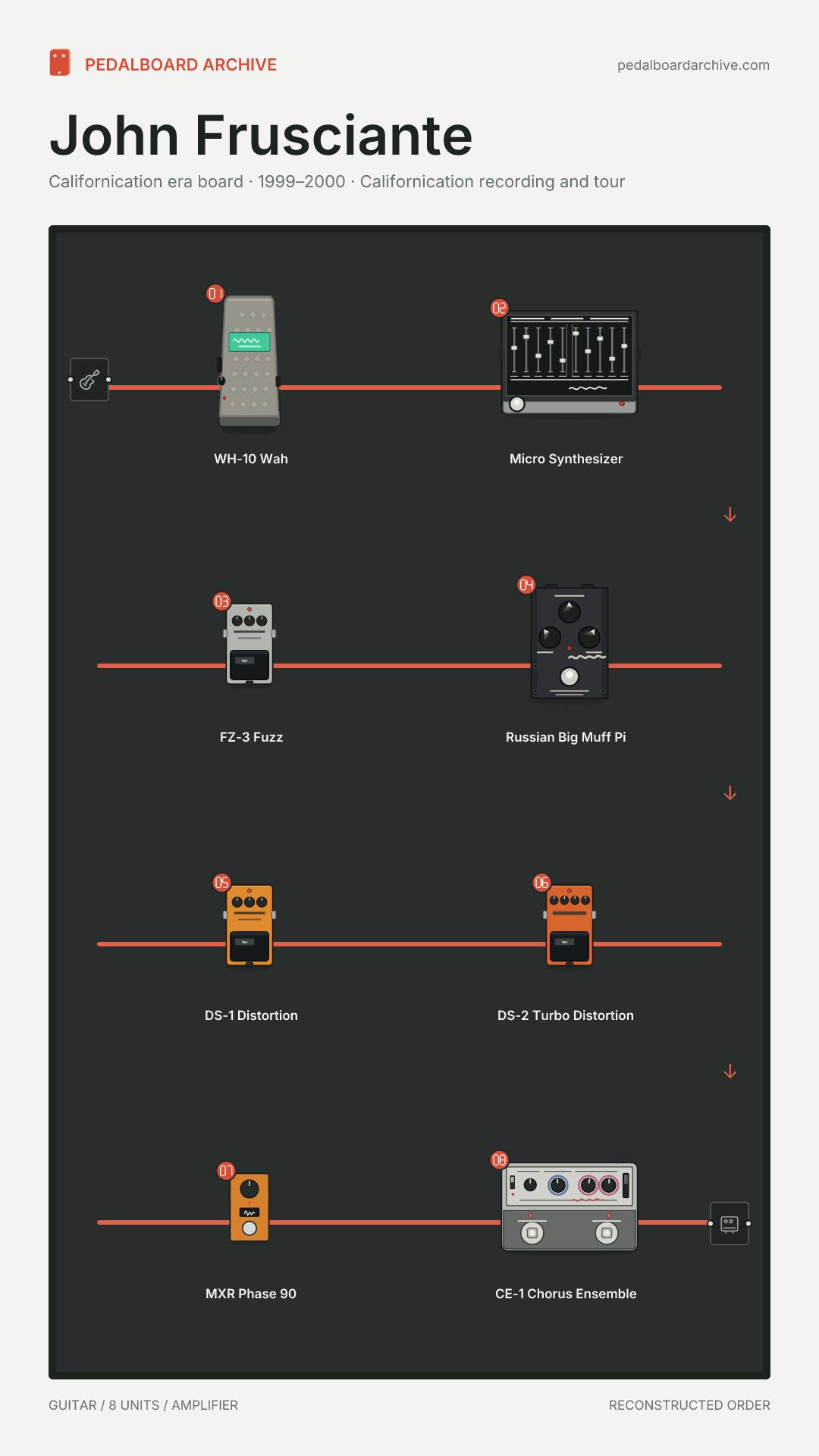

- The complete order is reconstructed, not observed. The layout follows the cited routing constraints and the archive's signal-chain convention where the sources are silent: Guitar → WH-10 Wah → Micro Synthesizer → FZ-3 Fuzz → Russian Big Muff Pi → DS-1 Distortion → DS-2 Turbo Distortion → MXR Phase 90 → CE-1 Chorus Ensemble → amplifier.
- Is this John Frusciante's full guitar rig?
- No. This dated entry covers 8 units in the effects path, not every piece of gear John Frusciante owned or used. Floor pedals, rack units and routing devices are included only where recorded; omitted equipment and uncertain connections are explained in the notes. It is not a complete or current rig inventory.
- When and where was this pedalboard used?
- 1999–2000. Californication recording and tour. This is the rig documented for that touring period, not a career-wide gear list.
- How does the archive know what was on this pedalboard?
- 2 cited sources, listed above with the date each was read, including Ground Guitar, Mixdown Magazine. Among them a written article. The units are recorded as visually identified equipment, and the page was last audited on 2026-08-15.
