John LennonPedalboard, 1966

John Lennon was photographed working a silver WEM Rush Pep Box fuzz at EMI Studio Three in April 1966, while the Beatles recorded Paperback Writer and Rain.

Board
Paperback Writer session Pep Box path
Context
EMI Studio Three, London
Board date
Evidence
Documented equipment · 3 cited sources
Order
Cable-traced
Scope
Core signal path
Routing
Serial path
Audited
Signal
1 unit · Guitar to amplifier

Paperback Writer session Pep Box path

Suggest a correction

Your note on John Lennon, Paperback Writer session Pep Box path is with the editors. Corrections are read by hand and checked against the sources before anything on this page changes.

The correction could not be sent. Nothing was lost — your text is still in the form below.

Spotted a missing unit, a wrong date or stronger evidence? Submissions are reviewed as research leads and do not become cited evidence automatically. Please do not include your name, email address or other personal details.

InputGuitar
WEM Rush Pep Box
OutputAmplifier

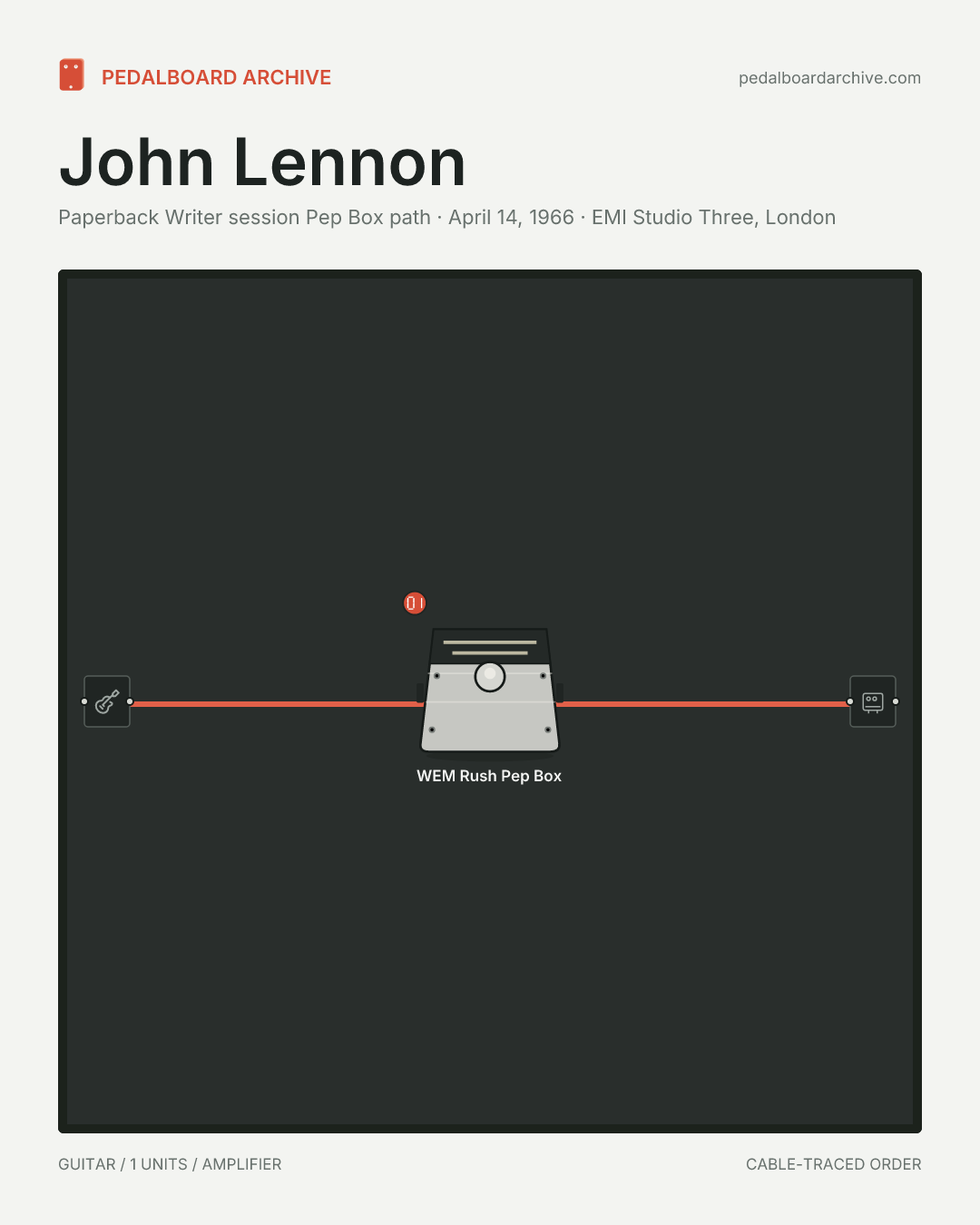

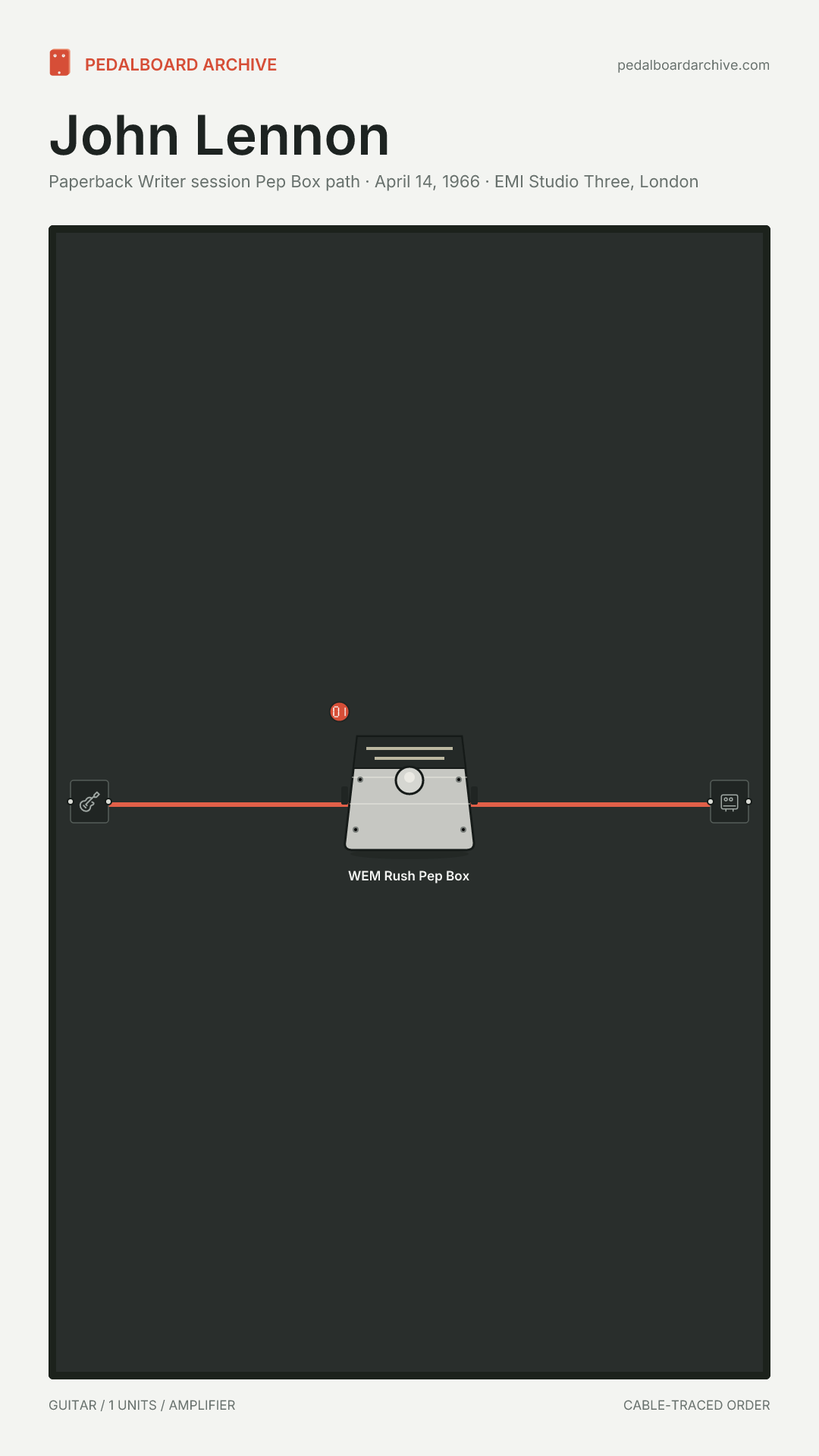

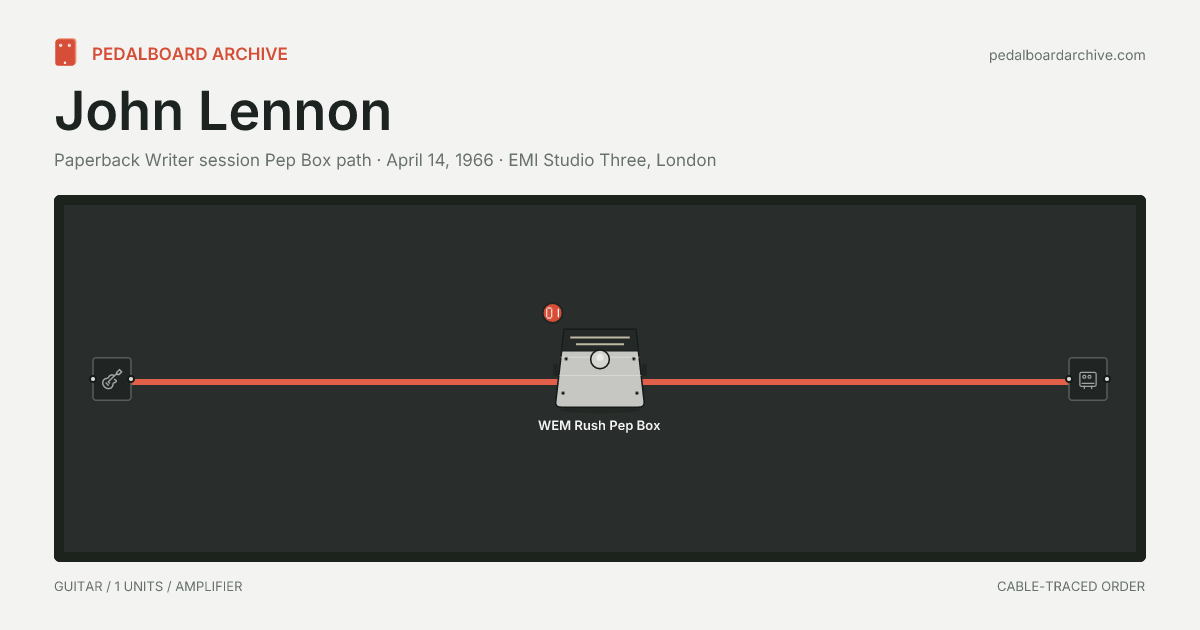

Sequence verified cable by cable
