Eddie Hazel recorded the ten-minute Maggot Brain solo with a wah and a fuzz in the guitar path; neither model is documented. George Clinton added most of the track's echo later, at mixdown.
Maggot Brain performance effects
Order evidence: No source publishes this sequence; the order is reconstructed
Inside the rig · 2 units
Pedal roles & evidence
How each unit fits Eddie Hazel's 1970 setup. Board-specific roles and the evidence behind each identification and position.

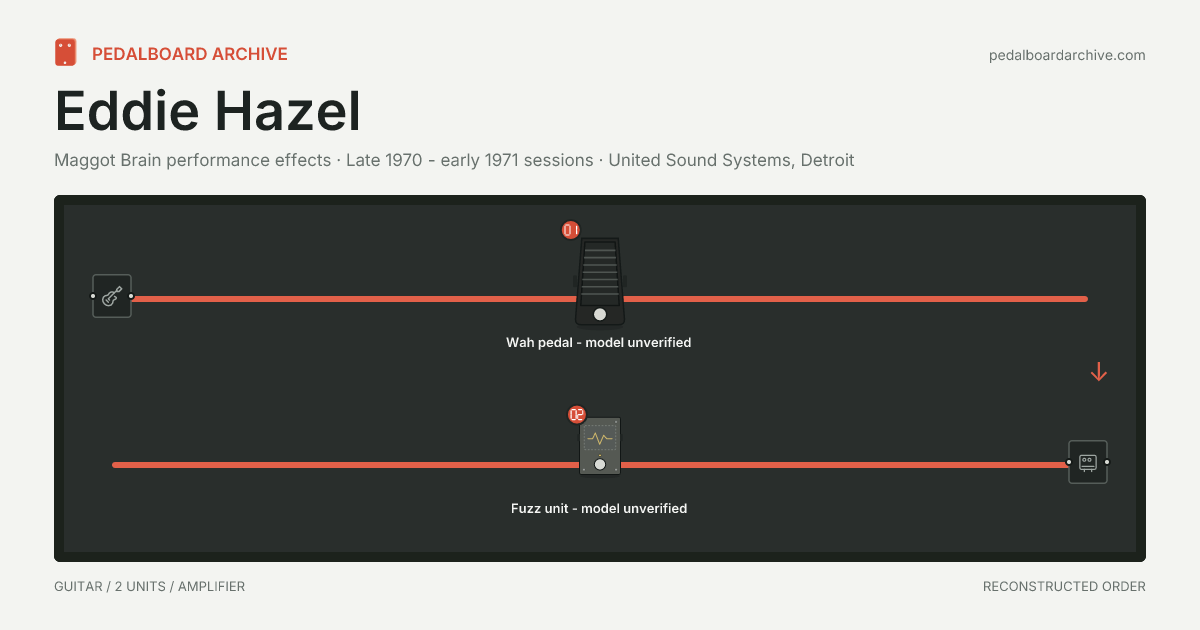

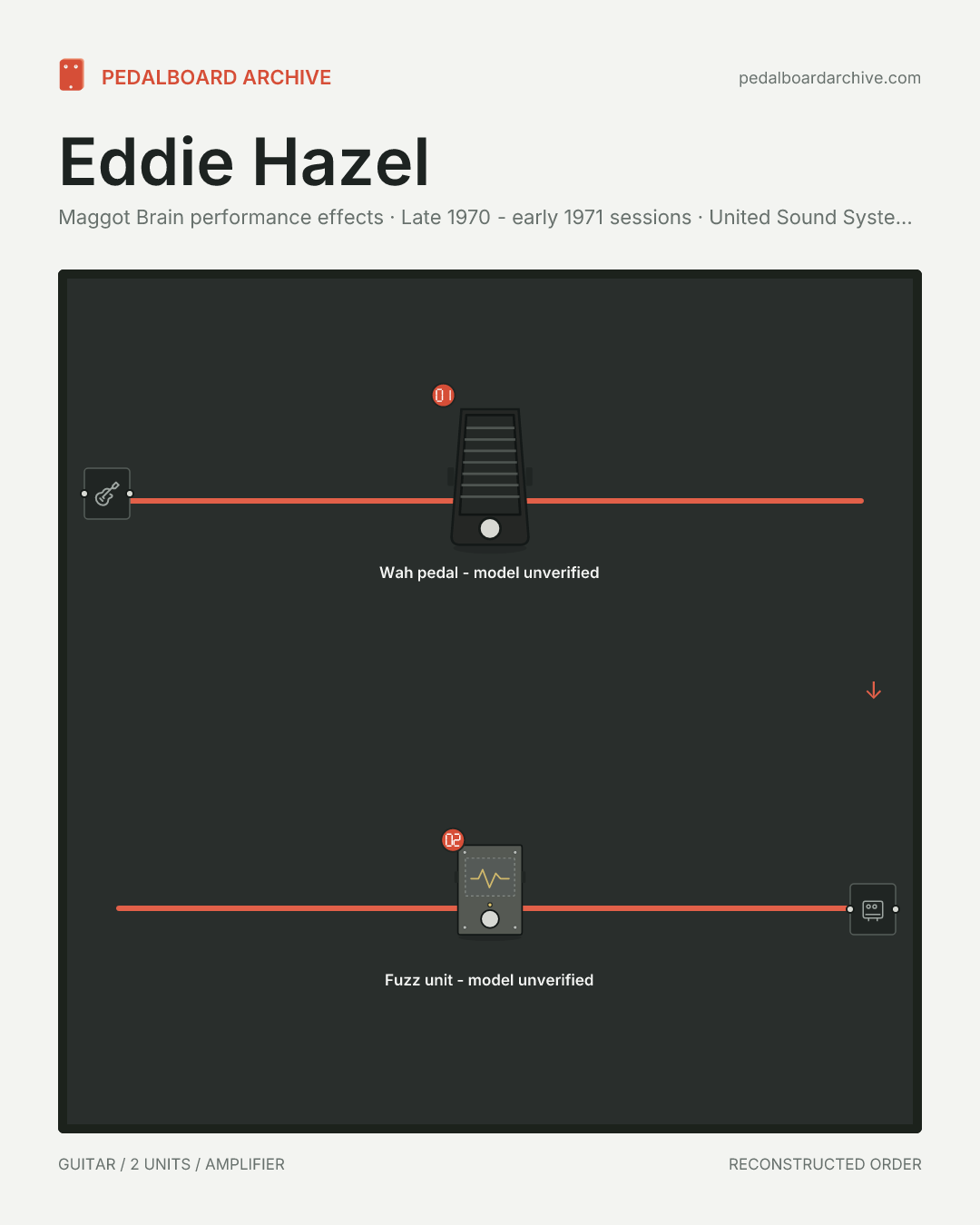

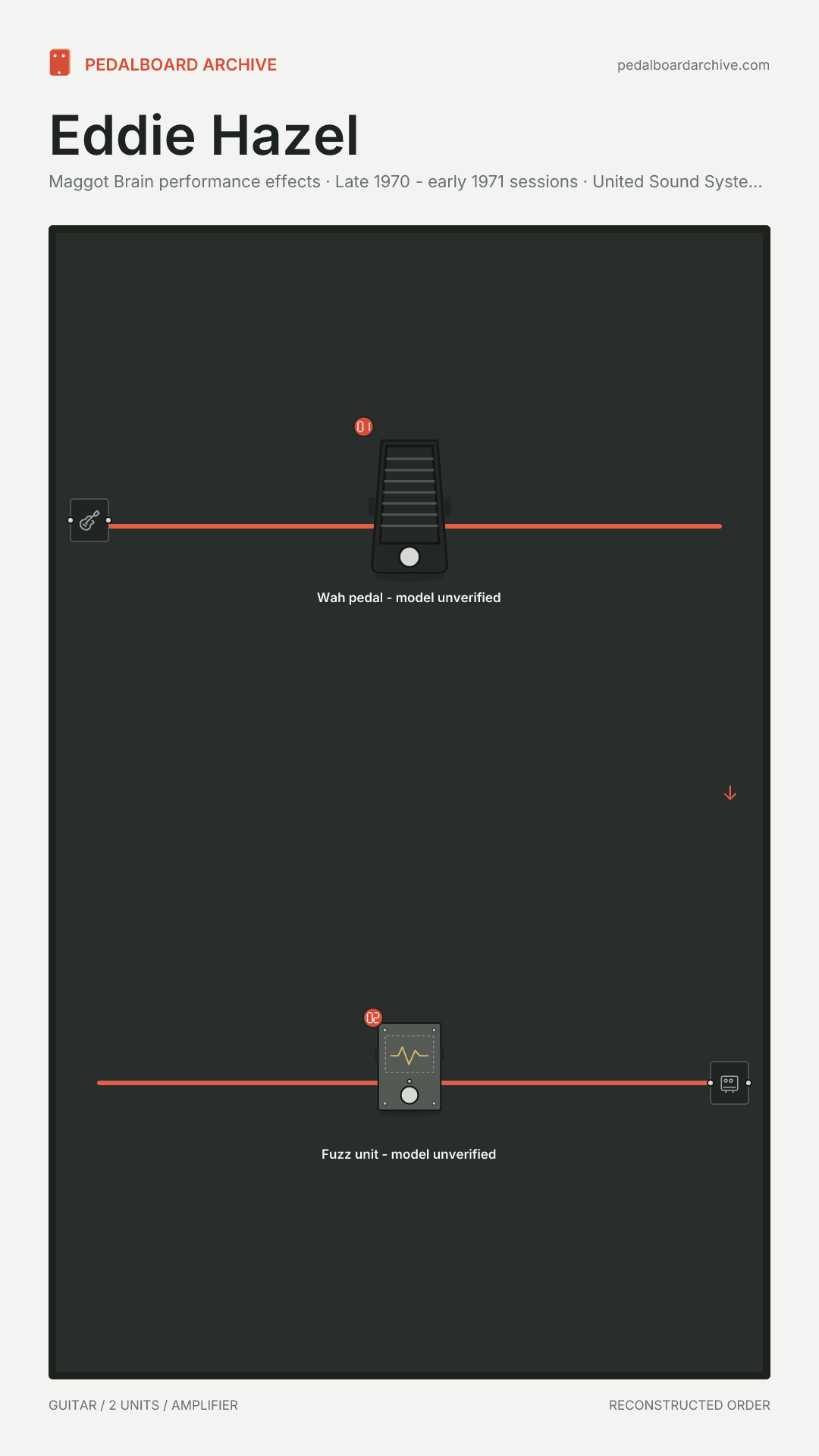

Reconstructed orderIdentity and position are evidenced separately. Reconstructed positions are not observed connections.
Filter & EQ
Wah pedal - model unverified
Front of amp
Role in this rig
Shapes the solo's vocal sweeps and narrow resonant peaks before the recorded guitar reaches the mix.
- Identity
- Reconstructed
- Position
- Reconstructed
Gain
Fuzz unit - model unverified
Front of amp
Role in this rig
Creates the saturated, disintegrating lead texture while preserving Hazel's bends and wide dynamic changes.
- Identity
- Reconstructed
- Position
- Reconstructed
Reconstructed equipment · Reconstructed order · Serial path
Fender's track history identifies both wah and fuzz in Hazel's recorded performance and quotes Clinton explaining that he added the Echoplex repeats and other effects during mixdown. Clinton separately told Premier Guitar that Hazel learned wah, Big Muff and phaser pedals from the beginning, but that broader rig memory does not prove which fuzz model was on this session. NPR's interview confirms that the band played live before Clinton stripped back the arrangement and layered the echo. The two performance effects are therefore shown with deliberately unverified model names. Their display order follows a common Hendrix-derived wah-into-fuzz layout and is not presented as a cable trace; Echoplex, phaser and flanger are excluded from Hazel's floor path.
