Frank ZappaPedalboard, 1978
Frank Zappa's 1978 European tour rig was a relay-switched rack run from a floor controller. It split the guitar into clean and dirty outputs and added a Big Muff Pi, an MXR digital delay, a Roland Space Echo, an Eventide H949 and a Mu-Tron Bi-Phase.
Blue Box four-output effects system
Order evidence: A source states the sequence

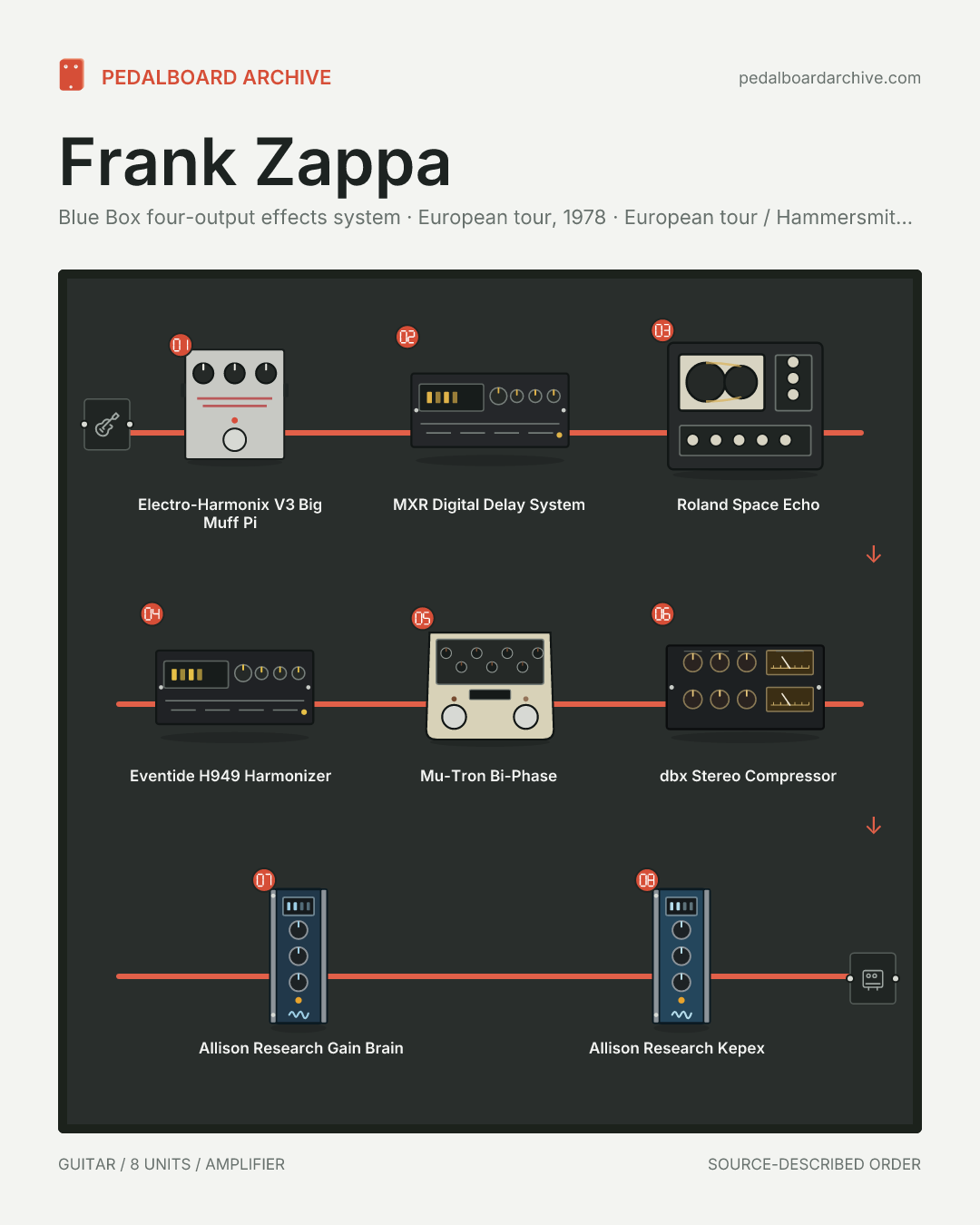

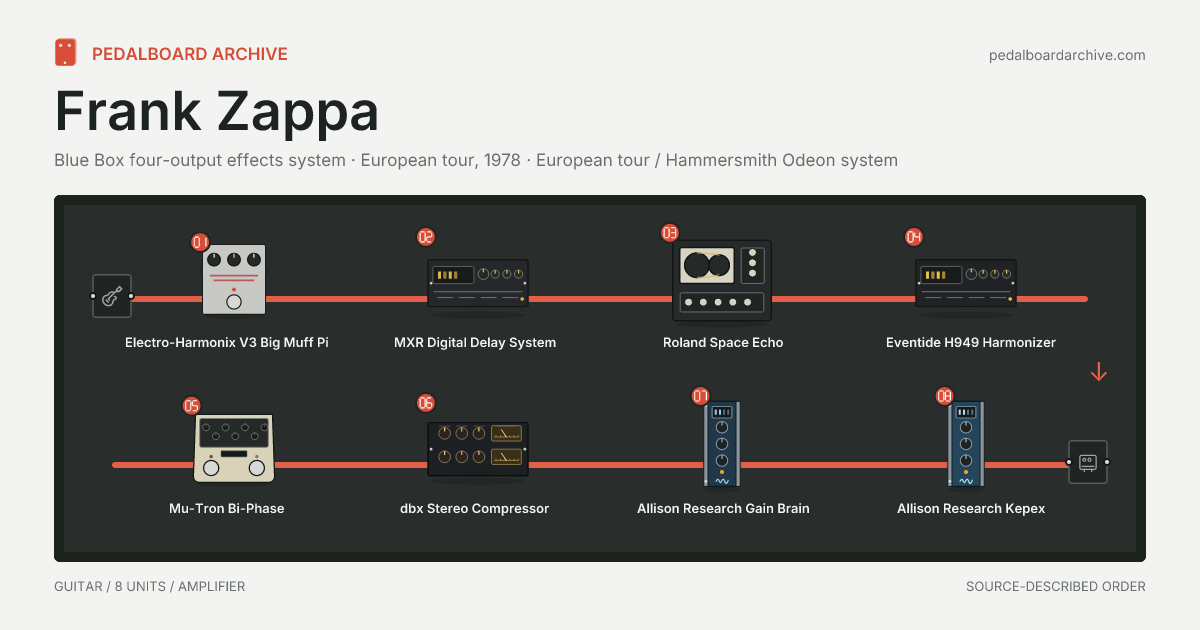

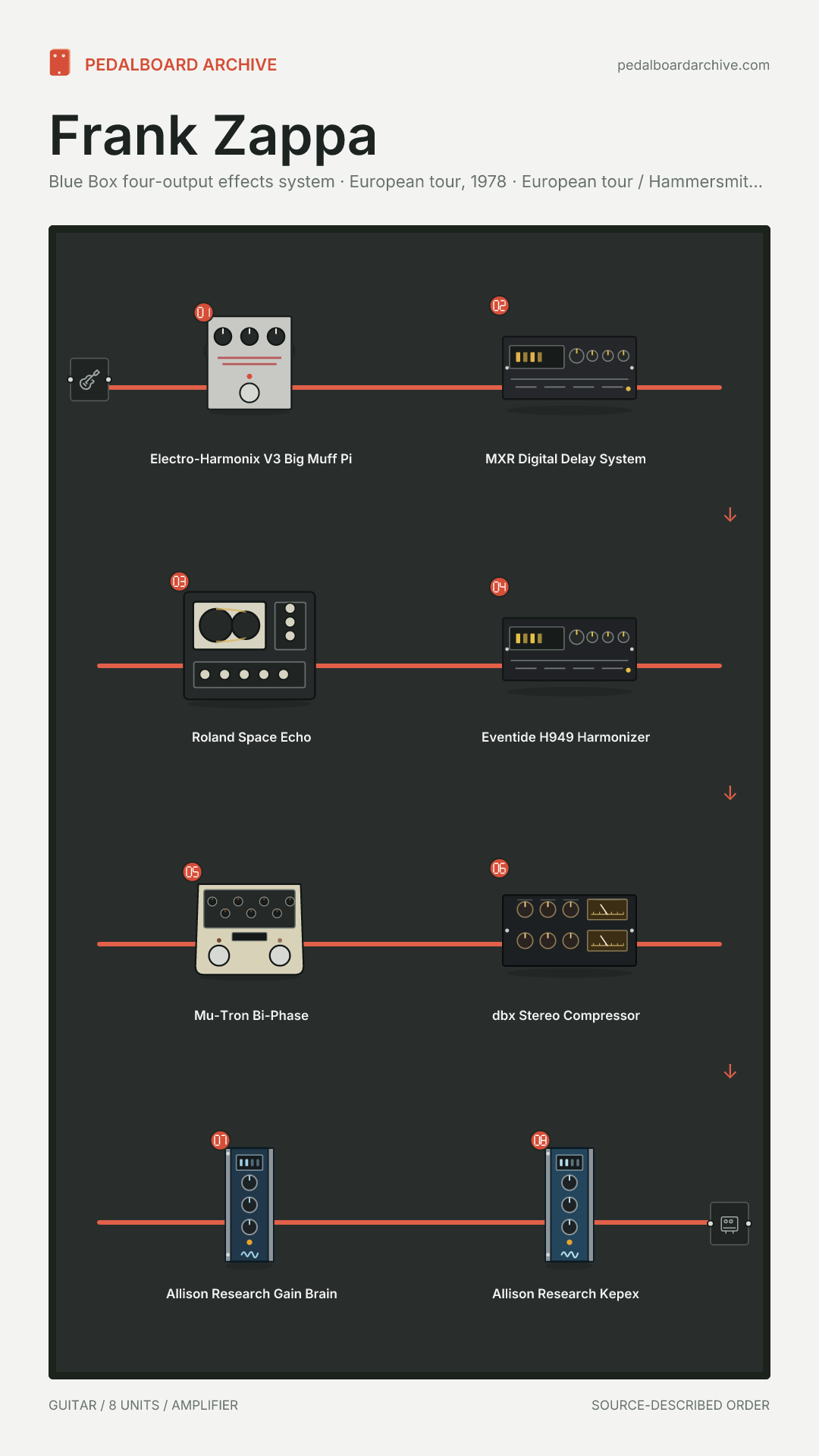

Inside the rig · 8 units
Pedal roles & evidence
How each unit fits Frank Zappa's 1978 setup. Board-specific roles and the evidence behind each identification and position.
Source-described orderIdentity and position are evidenced separately. Reconstructed positions are not observed connections.
Gain
Electro-Harmonix V3 Big Muff Pi
Drive branch
Role in this rig
Creates one of the system's saturated dirty voices while clean paths remain available in parallel.
- Identity
- Documented
- Position
- Documented
Delay & Echo
MXR Digital Delay System
Switched loop
Role in this rig
Supplies time-based repeats to any selected clean or dirty output path.
- Identity
- Documented
- Position
- Documented
Delay & Echo
Roland Space Echo
Switched loop
Role in this rig
Adds tape repeats and ambient decay as one of the Blue Box's time-related jump loops.
- Identity
- Documented
- Position
- Documented
Pitch & Synth
Eventide H949 Harmonizer
Rack insert
Role in this rig
Creates pitch-shifted and doubled voices alongside the four principal clean and dirty outputs.
- Identity
- Documented
- Position
- Documented
Modulation
Mu-Tron Bi-Phase
Switched loop
Role in this rig
Provides deep dual-phase movement inside a selectable Blue Box jump loop.
- Identity
- Documented
- Position
- Documented
Dynamics
dbx Stereo Compressor
Clean branch
Role in this rig
Shapes attack and sustain strongly enough that the 1978 technical report noted Zappa visibly triggering it during performance.
- Identity
- Documented
- Position
- Documented
Dynamics
Allison Research Gain Brain
Rack insert
Role in this rig
Works mainly as a limiter within the Blue Box's parallel processing paths.
- Identity
- Documented
- Position
- Documented
Dynamics
Allison Research Kepex
Rack insert
Role in this rig
Controls noise and dynamic expansion, used principally in limiting and cleanup duties.
- Identity
- Documented
- Position
- Documented
Documented equipment · Documented order · Split output path
Studio Sound interviewed guitar technician David Gray while the system was being prepared and documented its signal split, jump-loop relay design, four outputs and named processor inventory. Dweezil Zappa independently confirms the multi-amp plus clean-DI architecture and the Big Muff, MXR delay, Eventide Harmonizer and dbx compression families. The display represents the named effect loops, not a fixed cable order: Gray stated that the modules were regularly repatched to test combinations. Buffers, Alembic preamp, Yamaha mixer, VCA blend controls, Burwen and Clear Sound integrity modules and the 24-switch remote are documented but omitted as routing utilities.
Cited sources
MethodologyQuestions about Frank Zappa's 1978 pedalboard
- What pedals did Frank Zappa use in 1978?
- This dated entry lists 8 units: Electro-Harmonix V3 Big Muff Pi, MXR Digital Delay System, Roland Space Echo, Eventide H949 Harmonizer, Mu-Tron Bi-Phase, dbx Stereo Compressor, Allison Research Gain Brain, Allison Research Kepex. This is the recorded inventory, not a claim that every connection or model identification is confirmed; see the evidence and routing notes.
- What order were Frank Zappa's pedals in?
- A cited source states the order. See the diagram and routing notes for the separate paths and any unconfirmed connections.
- Is this Frank Zappa's full guitar rig?
- No. This dated entry covers 8 units in the effects path, not every piece of gear Frank Zappa owned or used. Floor pedals, rack units and routing devices are included only where recorded; omitted equipment and uncertain connections are explained in the notes. It is not a complete or current rig inventory.
- When and where was this pedalboard used?
- European tour, 1978. European tour / Hammersmith Odeon system. This is the rig documented for that touring period, not a career-wide gear list.
- How does the archive know what was on this pedalboard?
- 3 cited sources, listed above with the date each was read, including Studio Sound, Guitar Player, Equipboard. Among them a rig rundown, an interview and an archive record. The units are recorded as documented equipment, and the page was last audited on 2026-07-18.
