Paul Gilbert

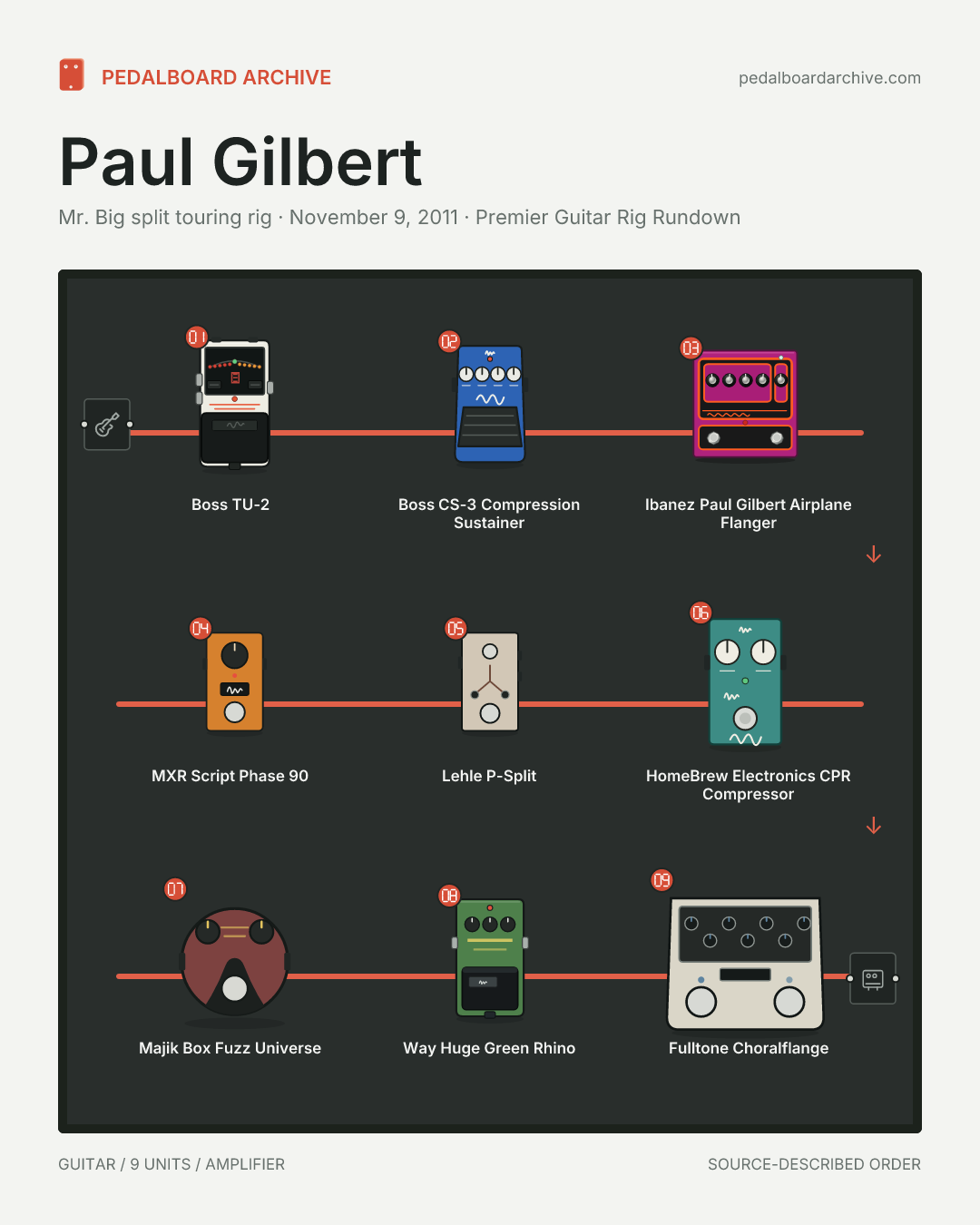

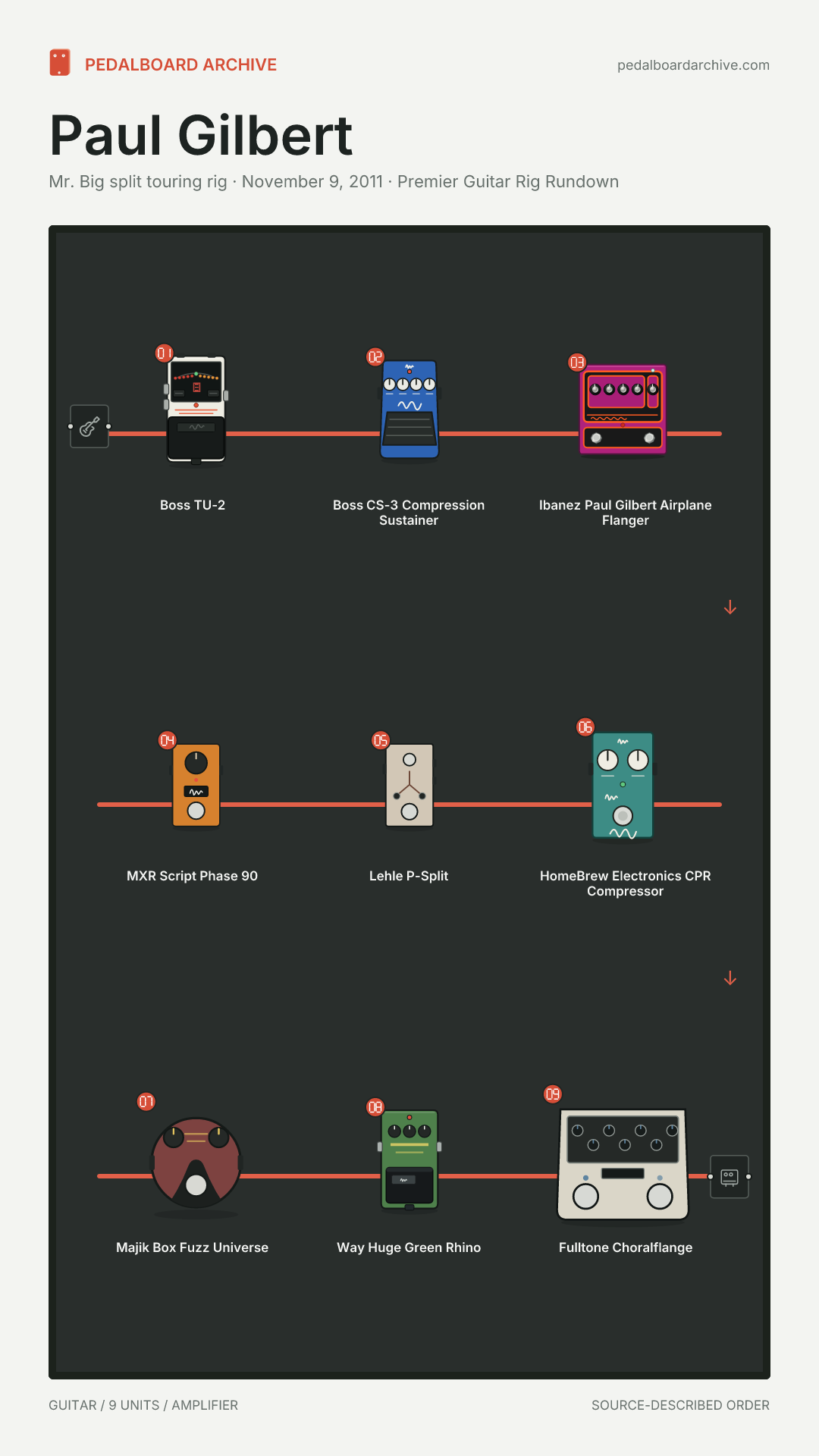

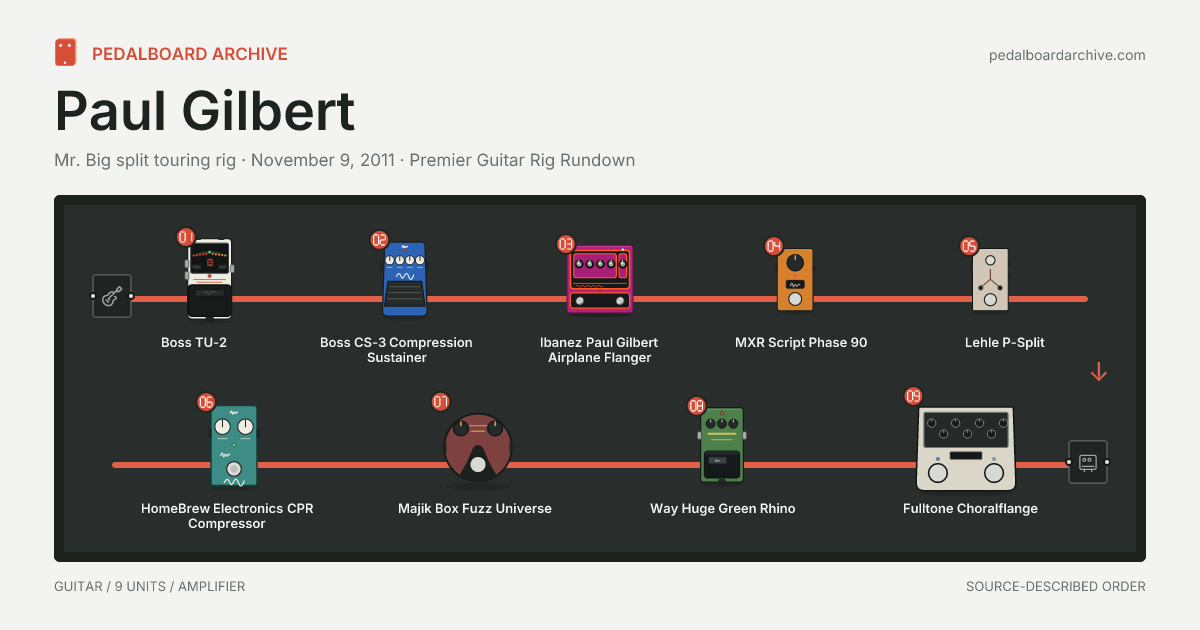

Gilbert sent tuner, compressor, flanger and phaser into an isolated split: one compressed monitor feed and one fuzz, overdrive and chorus/flanger amplifier branch.
Signal path / A
Mr. Big split touring rig
Documented split signal path
Documented equipment · Source-described order · Split output path
Premier Guitar describes the split and each branch. The DI box at the end of the monitor branch is routing hardware and is described rather than rendered as a tonal pedal. BOSS independently corroborates Gilbert's long-term TU-2 and compression/delay vocabulary without importing a different board era.
