Scott McKeonPedalboard, 2022

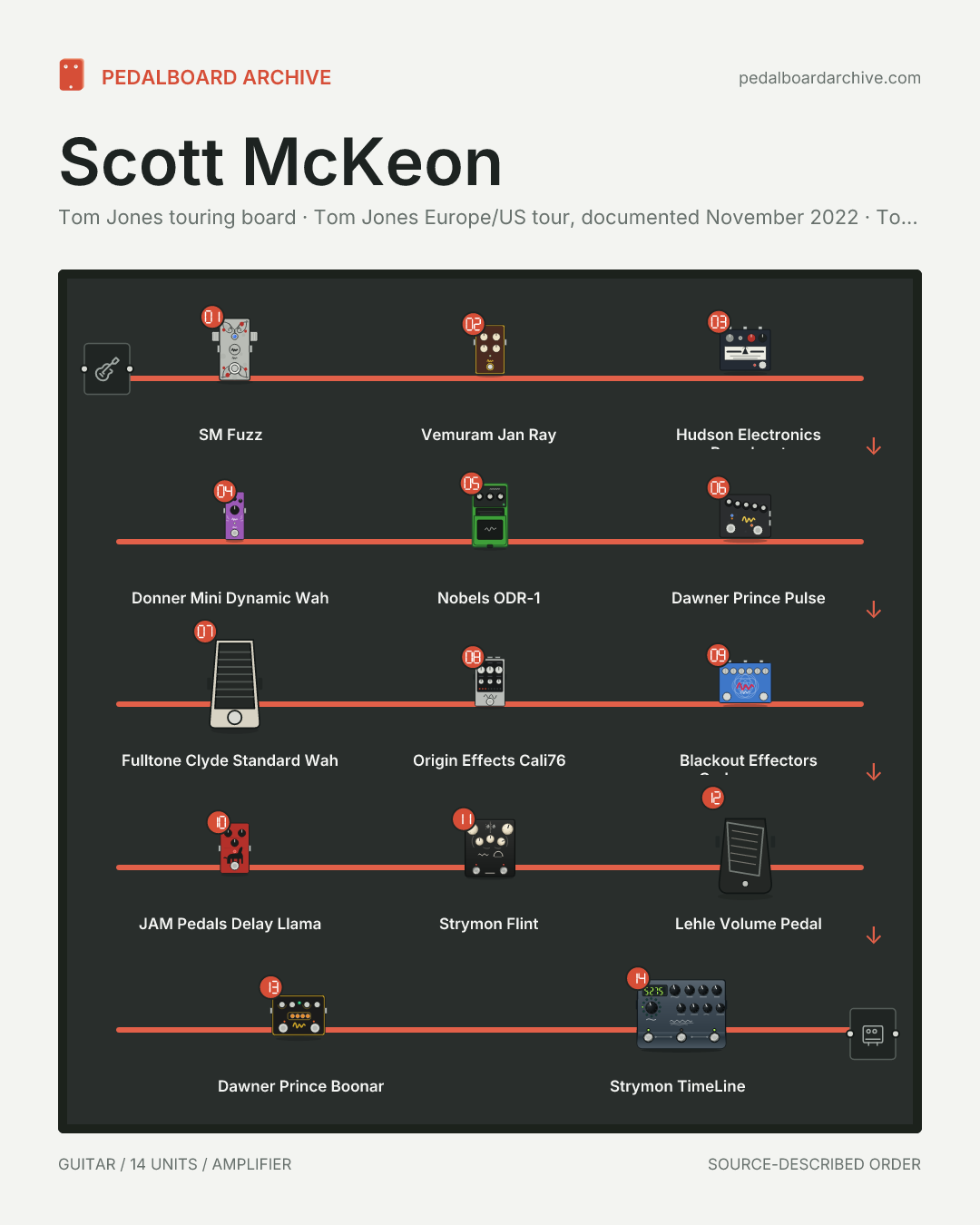

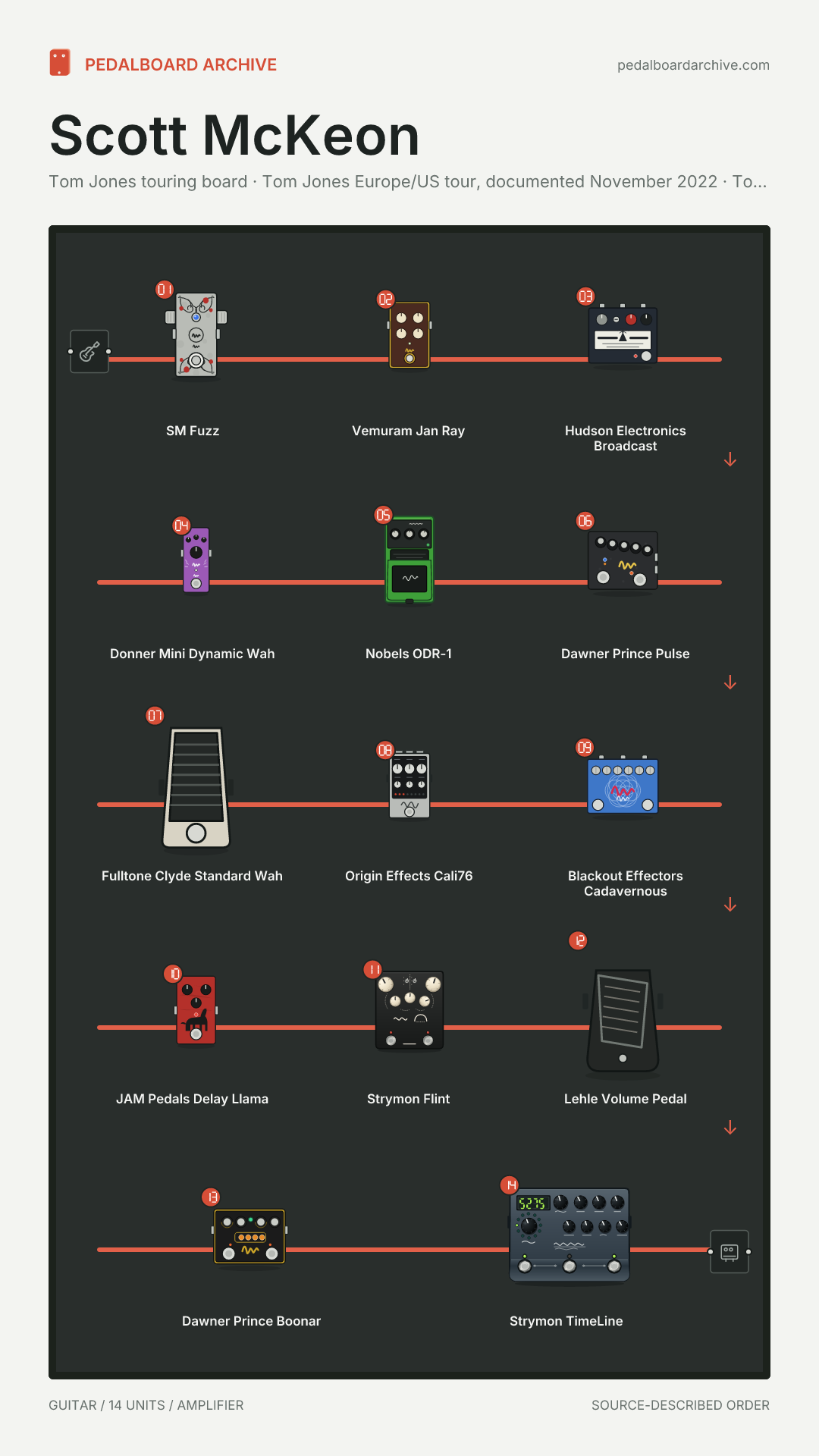

Scott McKeon's Tom Jones touring board puts an SM Fuzz and a Vemuram Jan Ray ahead of two four-loop switchers holding a Hudson Broadcast, a Nobels ODR-1, a Cali76, a Delay Llama and a Strymon Flint. The volume pedal sits after the gain so delays trail on.
Tom Jones touring board
Order evidence: A source states the sequence
Inside the rig · 14 units
Pedal roles & evidence
How each unit fits Scott McKeon's 2022 setup. Board-specific roles and the evidence behind each identification and position.
Source-described orderIdentity and position are evidenced separately. Reconstructed positions are not observed connections.
Gain
SM Fuzz
Front of amp
Role in this rig
Opens the board: the first unit the guitar reaches, and the pedal McKeon calls the most valuable on it.
- Identity
- Documented
- Position
- Documented
Gain
Vemuram Jan Ray
Front of amp
Role in this rig
Second in the chain, adding a cleaner overdrive voice alongside the fuzz.
- Identity
- Documented
- Position
- Documented
Gain
Hudson Electronics Broadcast
Switched loop
Role in this rig
Loop one of the first switcher, held as a preamp boost.
- Identity
- Documented
- Position
- Documented
Filter & EQ
Donner Mini Dynamic Wah
Switched loop
Role in this rig
Loop two of the first switcher, providing the board's touch-swept filter.
- Identity
- Documented
- Position
- Documented
Gain
Nobels ODR-1
Switched loop
Role in this rig
Loop three of the first switcher, the board's second overdrive voice.
- Identity
- Documented
- Position
- Documented
Modulation
Dawner Prince Pulse
Switched loop
Role in this rig
Loop four of the first switcher, and the board's Leslie sound.
- Identity
- Documented
- Position
- Documented
Filter & EQ
Fulltone Clyde Standard Wah
Front of amp
Role in this rig
Supplies the rig's foot-swept wah, named by McKeon but not placed in the published order.
Named by McKeon in the same breath as the first switcher, but no source places it in the chain; the photographs show it on the floor beside the board.
- Identity
- Documented
- Position
- Reconstructed
Dynamics
Origin Effects Cali76
Switched loop
Role in this rig
Loop one of the second switcher, setting dynamics after the drive section.
The source names an Origin Cali76 without stating which model in the range; the board photographs show a compact chassis but not a legible variant name.
- Identity
- Documented
- Position
- Documented
Reverb & Ambience
Blackout Effectors Cadavernous
Switched loop
Role in this rig
Loop two of the second switcher, the board's reverb.
- Identity
- Documented
- Position
- Documented
Delay & Echo
JAM Pedals Delay Llama
Switched loop
Role in this rig
Loop three of the second switcher, providing the board's slapback.
- Identity
- Documented
- Position
- Documented
Reverb & Ambience
Strymon Flint
Switched loop
Role in this rig
Loop four of the second switcher, named by McKeon as the board's tremolo.
- Identity
- Documented
- Position
- Documented
Routing & Control
Lehle Volume Pedal
Front of amp
Role in this rig
Takes the output of both switchers, placed after the drives and compressor so it can be used for swells.
- Identity
- Documented
- Position
- Documented
Delay & Echo
Dawner Prince Boonar
Front of amp
Role in this rig
First of the two delays after the volume pedal, so its repeats trail through volume swells.
- Identity
- Documented
- Position
- Documented
Delay & Echo
Strymon TimeLine
Front of amp
Role in this rig
Closes the chain with long atmospheric delays on the Tom Jones material played to a click.
- Identity
- Documented
- Position
- Documented
Documented equipment · Documented order · Switchable effects loops
McKeon walks the board himself in Guitar World, naming the order from the SM Fuzz onward and listing the contents of both GigRig switchers; the overhead photograph published with the feature shows those loops labelled on the switchers themselves, and Dawner Prince published its own photograph of the same tour board five months earlier. The two switchers are drawn as the loop groups the artist describes rather than as units of their own. The Fulltone Clyde Standard wah is named in the same paragraph but never placed: both photographs show it on the floor beside the board rather than in a loop, so it is drawn where the source introduces it and its position is marked reconstructed. The PolyTune 2 tuner and the two Cioks DC10 supplies are omitted as utility devices, and the SM Octave Fuzz that McKeon used on the New Morning sessions is not on this board.
Cited sources
MethodologyQuestions about Scott McKeon's 2022 pedalboard
- What pedals did Scott McKeon use in 2022?
- This dated entry lists 14 units: SM Fuzz, Vemuram Jan Ray, Hudson Electronics Broadcast, Donner Mini Dynamic Wah, Nobels ODR-1, Dawner Prince Pulse, Fulltone Clyde Standard Wah, Origin Effects Cali76, Blackout Effectors Cadavernous, JAM Pedals Delay Llama, Strymon Flint, Lehle Volume Pedal, Dawner Prince Boonar, Strymon TimeLine. This is the recorded inventory, not a claim that every connection or model identification is confirmed; see the evidence and routing notes.
- What order were Scott McKeon's pedals in?
- A cited source states the order. See the diagram and routing notes for the separate paths and any unconfirmed connections.
- Is this Scott McKeon's full guitar rig?
- No. This dated entry covers 14 units in the effects path, not every piece of gear Scott McKeon owned or used. Floor pedals, rack units and routing devices are included only where recorded; omitted equipment and uncertain connections are explained in the notes. It is not a complete or current rig inventory.
- When and where was this pedalboard used?
- Tom Jones Europe/US tour, documented November 2022. Touring rig. This is one dated setup as documented, not a career-wide gear list.
- How does the archive know what was on this pedalboard?
- 3 cited sources, listed above with the date each was read, including Guitar World, Dawner Prince Electronics, Guitar.com. Among them an interview and a photograph. The units are recorded as documented equipment, and the page was last audited on 2026-08-18.
